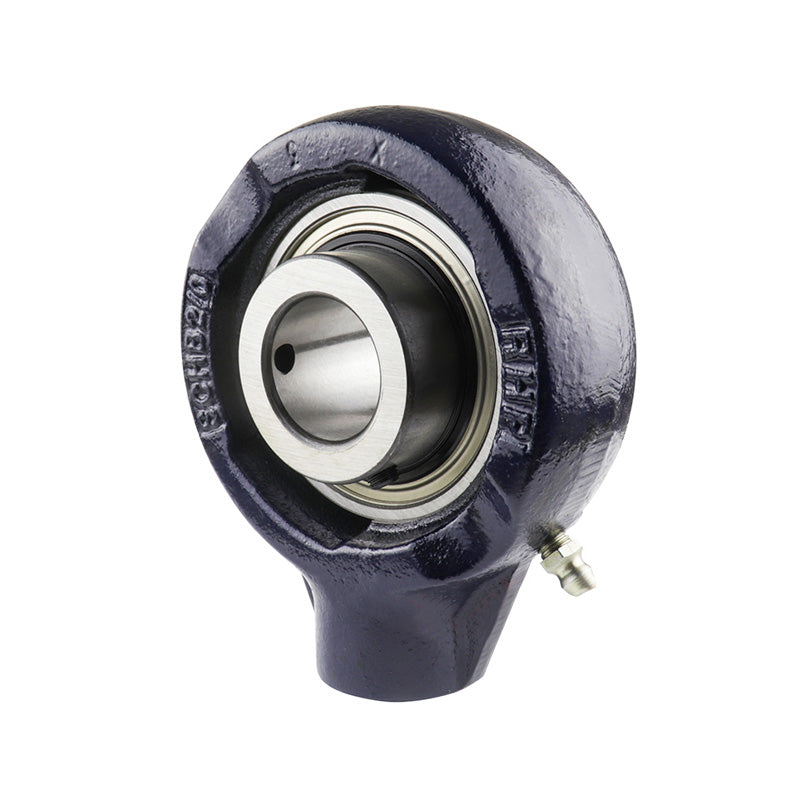

• RHP SCHB55 BSP Thread Cast Iron Hanger Bearing Unit and 55mm Bore Insert 143mm Outside Diameter
1 1

SKU: SCHB55-RHP

RHP SCHB55 BSP Thread Cast Iron Hanger Bearing Unit and 55mm Bore Insert 143mm Outside Diameter

RHP SCHB55 BSP Thread Cast Iron Hanger Bearing Unit and 55mm Bore Insert 143mm Outside Diameter
$214.62 ex VAT
$214.62 ex VAT
Sale Sold out

In stock

Price Break
10+ $143.76
20+ $135.68
30+ $134.07
40+ $132.45
50+ $130.84
75+ $129.22
100+ $121.14
200+ $119.53
250+ $117.91
500+ $116.30
1000+ $113.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
55mm
Outside Diameter:
143mm
Style:
SCHB
Technical
Bore 55mm
G1 29mm
L 143mm
H 173.5mm
H1 101.6mm
Threads 1-1/4 BSP
A 58.5mm
A1 30.94mm
B 65.07mm
s 25.45mm
d1 75.34mm
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rec max speed 2800 rpm
Weight 3.5 kg
Insert <a href="advanced_search_result.php?keywords=1060-55G+insonly">1060-55G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
