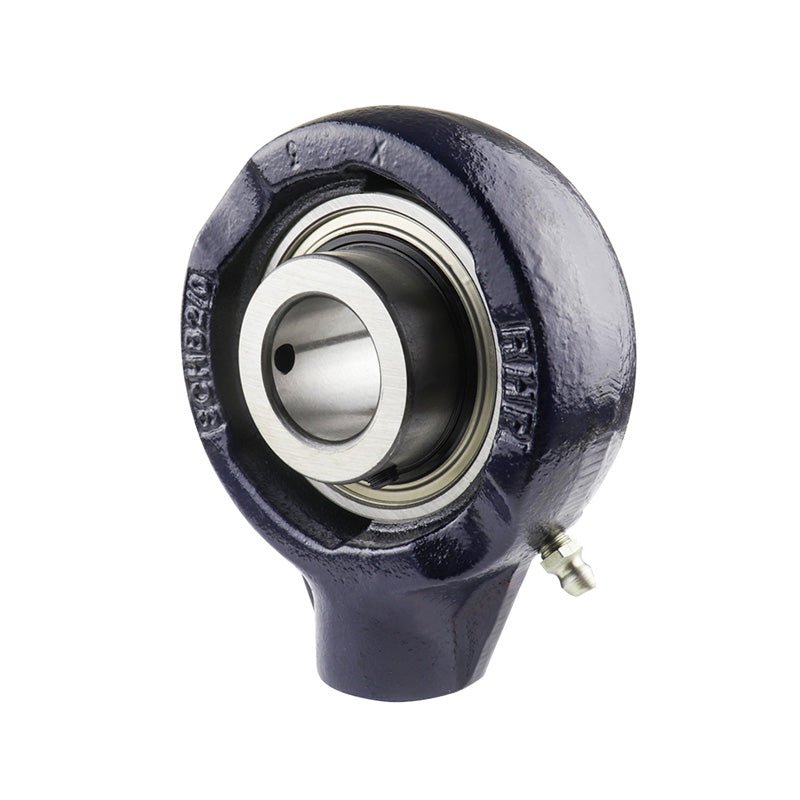

• RHP SCHB7/8 BSP Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter
1 1

SKU: SCHB7/8-RHP

RHP SCHB7/8 BSP Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter

RHP SCHB7/8 BSP Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter
$71.43 ex VAT
$71.43 ex VAT
Sale Sold out

In stock

Price Break
10+ $47.84
20+ $45.16
30+ $44.62
40+ $44.08
50+ $43.54
75+ $43.01
100+ $40.32
200+ $39.78
250+ $39.24
500+ $38.71
1000+ $37.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
22.23mm = 0.875 (7/8) inch
Outside Diameter:
89mm
Style:
SCHB
Technical
Bore 7/8 inch
G1 0.63 inch
L 3.504 inch
H 4.232 inch
H1 2.437 inch
Threads 1/2 BSP
A 1.319 inch
A1 0.875 inch
B 1.5 inch
s 0.627 inch
d1 1.575 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.2 kg
Insert <a href="advanced_search_result.php?keywords=1030-7/8G+insonly">1030-7/8G Click Here</a>
Casting group 2/0
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
