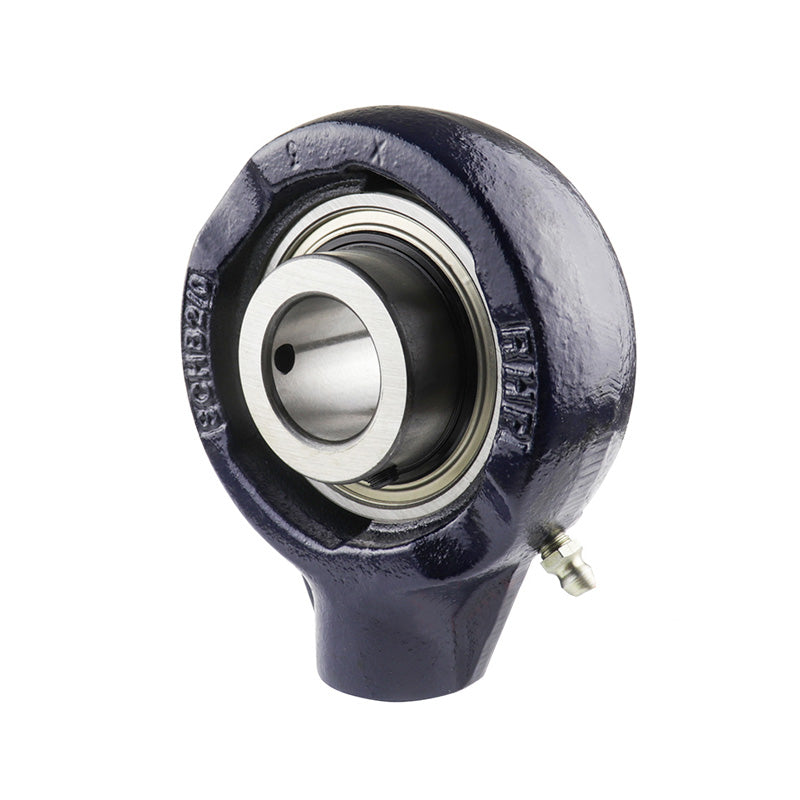

• RHP SCHB75 BSP Thread Cast Iron Hanger Bearing Unit and 75mm Bore Insert 165mm Outside Diameter
1 1

SKU: SCHB75-RHP

RHP SCHB75 BSP Thread Cast Iron Hanger Bearing Unit and 75mm Bore Insert 165mm Outside Diameter

RHP SCHB75 BSP Thread Cast Iron Hanger Bearing Unit and 75mm Bore Insert 165mm Outside Diameter
$314.95 ex VAT
$314.95 ex VAT
Sale Sold out

In stock

Price Break
10+ $210.97
20+ $199.11
30+ $196.74
40+ $194.37
50+ $192.00
75+ $189.63
100+ $177.78
200+ $175.41
250+ $173.04
500+ $170.67
1000+ $165.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
75mm
Outside Diameter:
165mm
Style:
SCHB
Technical
Bore 75mm
G1 32mm
L 165mm
H 200.6mm
H1 117.5mm
Threads 1-1/2 BSP
A 70mm
A1 34.94mm
B 77.77mm
s 33.37mm
d1 92mm
Dynamic load Cr 66000 N
Static load Cor 49500 N
Rec max speed 2300 rpm
Weight 6.8 kg
Insert <a href="advanced_search_result.php?keywords=1075-75G+insonly">1075-75G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
