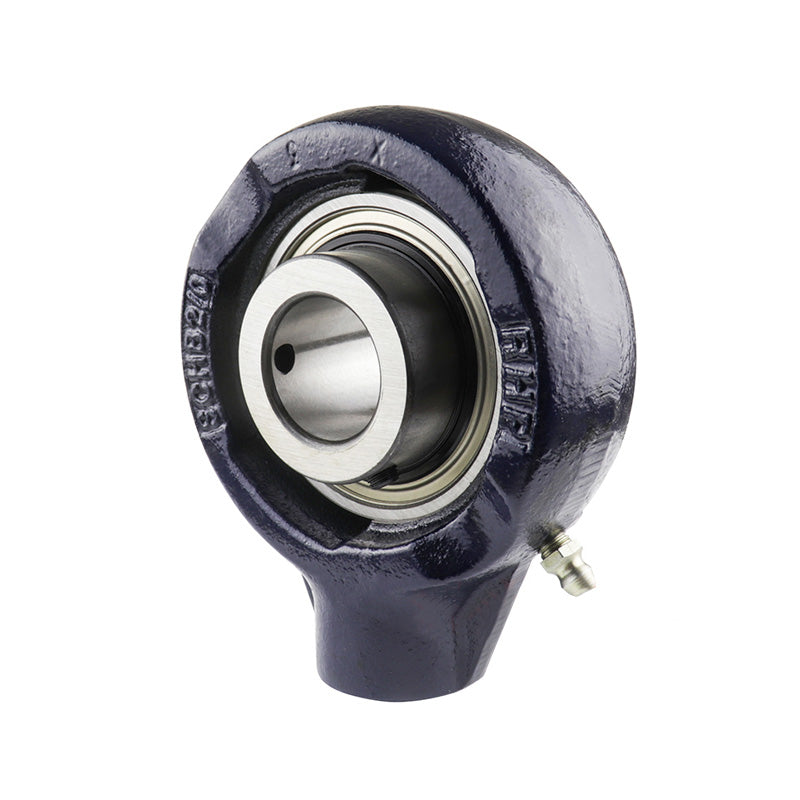

• RHP SCHB80 BSP Thread Cast Iron Hanger Bearing Unit and 80mm Bore Insert 174.5mm Outside Diameter
1 1

SKU: SCHB80-RHP

RHP SCHB80 BSP Thread Cast Iron Hanger Bearing Unit and 80mm Bore Insert 174.5mm Outside Diameter

RHP SCHB80 BSP Thread Cast Iron Hanger Bearing Unit and 80mm Bore Insert 174.5mm Outside Diameter
$367.30 ex VAT
$367.30 ex VAT
Sale Sold out

In stock

Price Break
10+ $246.04
20+ $232.21
30+ $229.45
40+ $226.68
50+ $223.92
75+ $221.16
100+ $207.33
200+ $204.57
250+ $201.80
500+ $199.04
1000+ $193.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
80mm
Outside Diameter:
174.5mm
Style:
SCHB
Technical
Bore 80mm
G1 32mm
L 174.5mm
H 211.5mm
H1 123.8mm
Threads 1-1/2 BSP
A 71.5mm
A1 41.29mm
B 82.55mm
s 33.37mm
d1 98.5mm
Dynamic load Cr 71500 N
Static load Cor 54500 N
Rec max speed 2150 rpm
Weight 8.1 kg
Insert <a href="advanced_search_result.php?keywords=1080-80G+insonly">1080-80G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
