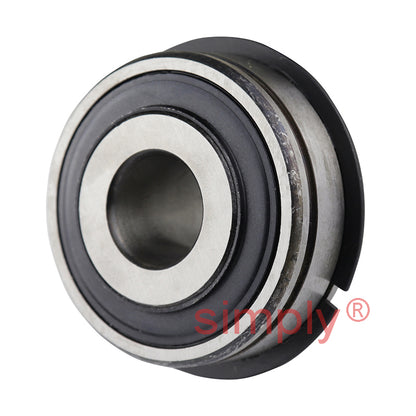

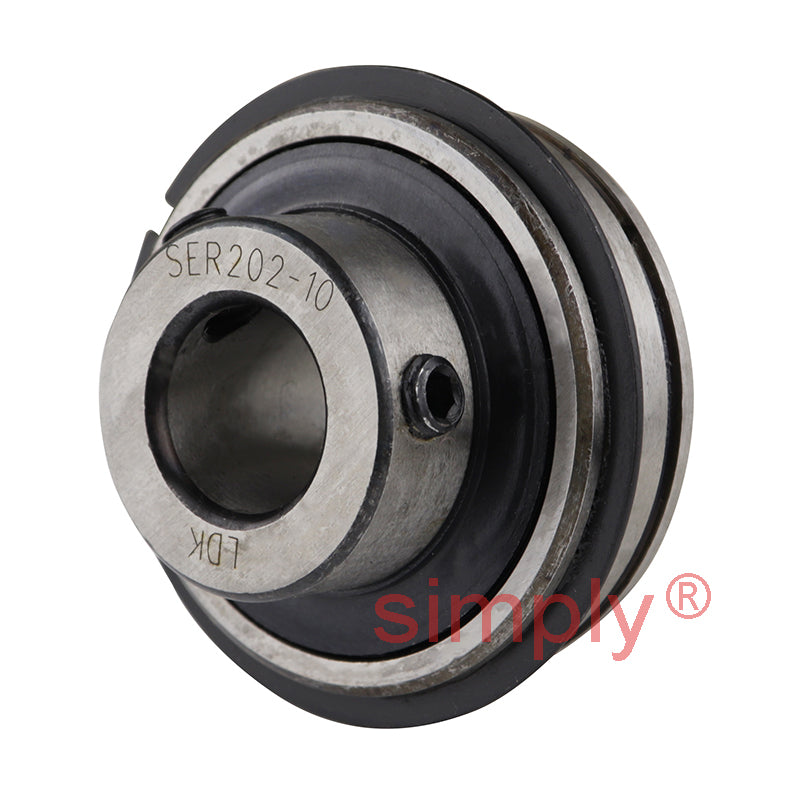

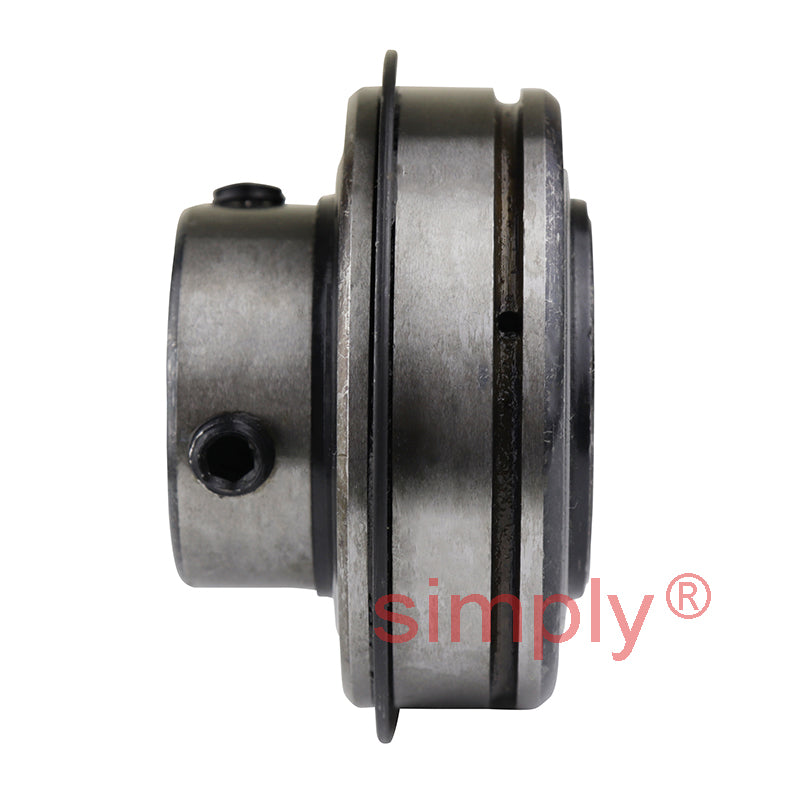

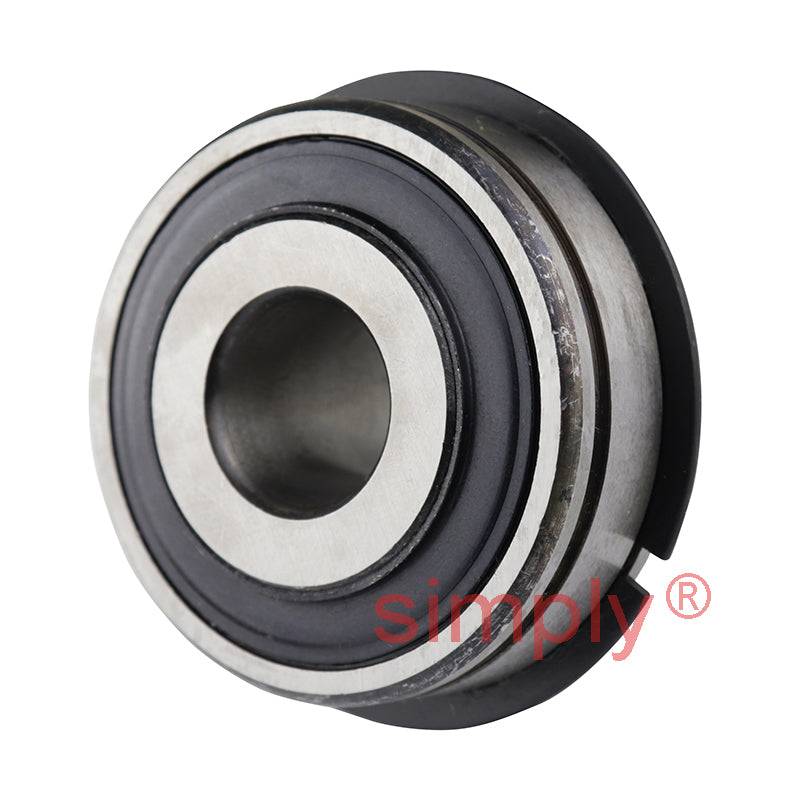

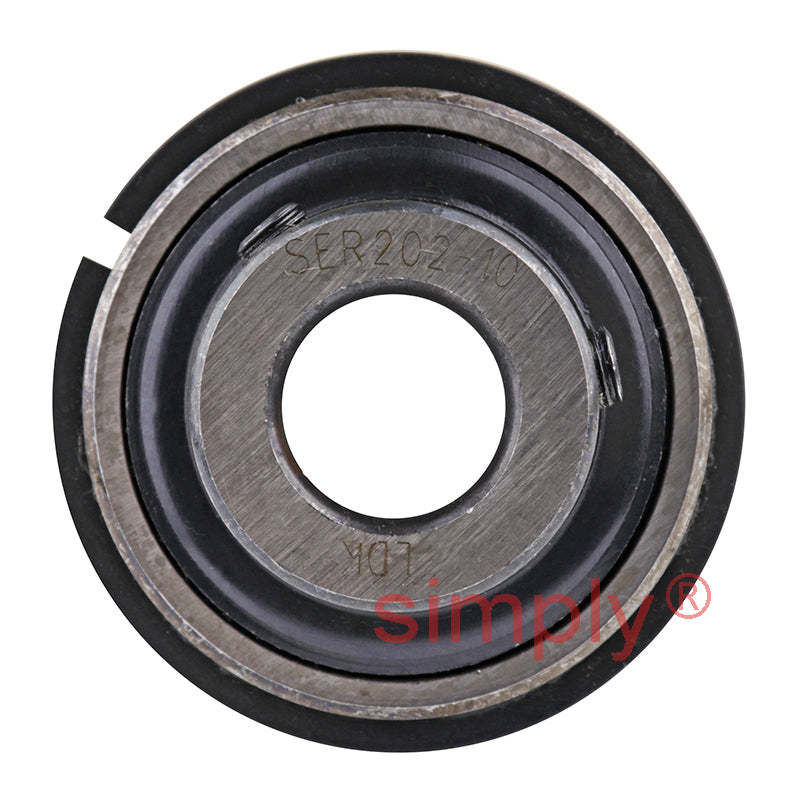

• SER202-10 Imperial Bearing Insert and Snap Ring 5/8 inch Bore 47mm Outside Dia
  • SER202-10 Imperial Bearing Insert and Snap Ring 5/8 inch Bore 47mm Outside Dia
  • SER202-10 Imperial Bearing Insert and Snap Ring 5/8 inch Bore 47mm Outside Dia
  • SER202-10 Imperial Bearing Insert and Snap Ring 5/8 inch Bore 47mm Outside Dia
1 4

SKU: SER.202-10

SER202-10 Imperial Bearing Insert and Snap Ring 5/8 inch Bore 47mm Outside Dia

SER202-10 Imperial Bearing Insert and Snap Ring 5/8 inch Bore 47mm Outside Dia
$30.33 ex VAT
$30.33 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.32
4+ $19.18
9+ $18.95
19+ $18.72
49+ $18.49
99+ $18.26
499+ $17.12
999+ $16.89
1999+ $16.66
2999+ $16.44
4999+ $15.98

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
15.88mm = 0.625 (5/8) inch
Outside Diameter:
47mm
Style:
SER
Technical
d 5/8 inch
D 47mm
Bi 31mm
Be 15.9mm
n 12.7mm
m 18.3mm
E 12.09mm
a 1.07mm
h 4mm
R 4.14mm
J 2.46mm
P 52.7mm
G 4.8mm
Grub screw 1/4"-28UNF
Weight 0.22 kg
Dynamic load 1010 kgf
Static load 630 kgf
