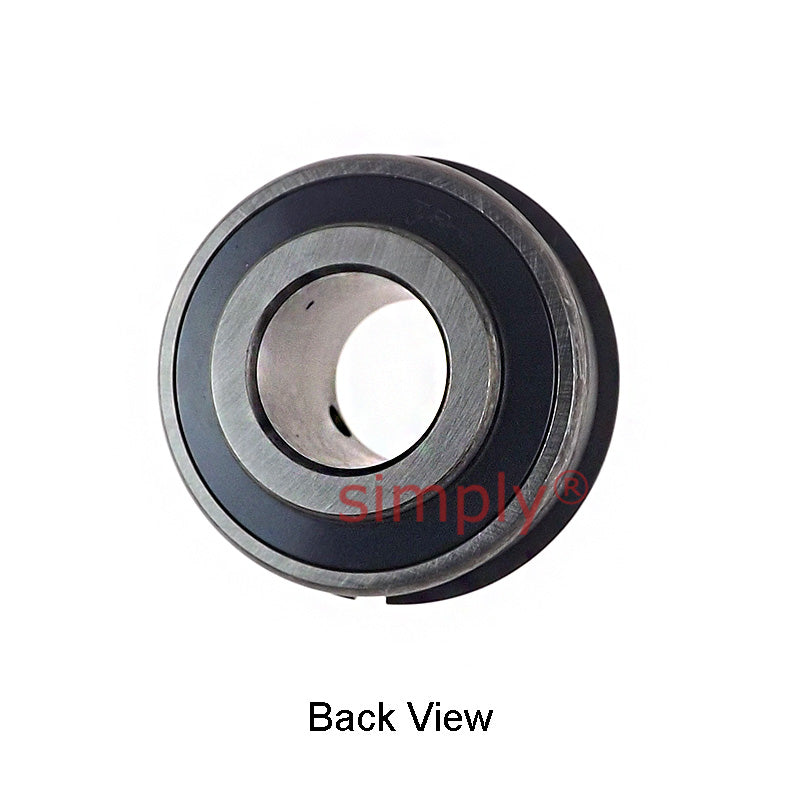

• SER203 Metric Bearing Insert and Snap Ring 17mm Bore 47mm Outside Dia
  • SER203 Metric Bearing Insert and Snap Ring 17mm Bore 47mm Outside Dia
1 2

SKU: SER.203

SER203 Metric Bearing Insert and Snap Ring 17mm Bore 47mm Outside Dia

SER203 Metric Bearing Insert and Snap Ring 17mm Bore 47mm Outside Dia
$31.48 ex VAT
$31.48 ex VAT
Sale Sold out

In stock

Price Break
3+ $21.09
4+ $19.90
9+ $19.67
19+ $19.43
49+ $19.19
99+ $18.96
499+ $17.77
999+ $17.53
1999+ $17.30
2999+ $17.06
4999+ $16.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
17mm
Outside Diameter:
47mm
Style:
SER
Technical
d 17mm
D 47mm
Bi 31mm
Be 15.9mm
n 12.7mm
m 18.3mm
E 12.09mm
a 1.07mm
h 4mm
R 4.14mm
J 2.46mm
P 52.7mm
G 4.8mm
Grub screw M6X1.0
Weight 0.22 kg
Dynamic load 1010 kgf
Static load 630 kgf
