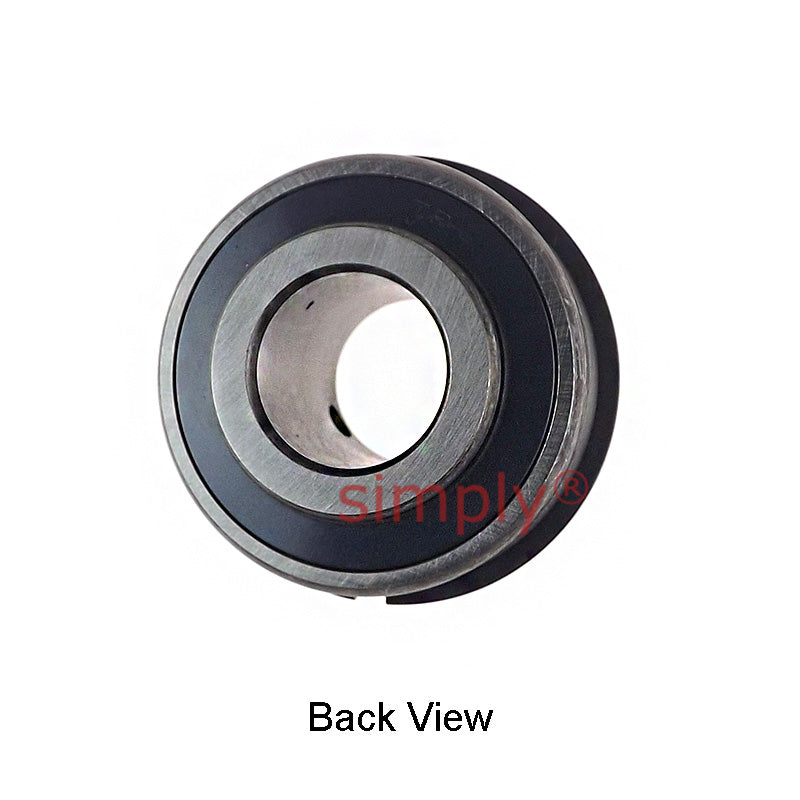

• SER205-14 Imperial Bearing Insert and Snap Ring 7/8 inch Bore 52mm Outside Dia
  • SER205-14 Imperial Bearing Insert and Snap Ring 7/8 inch Bore 52mm Outside Dia
1 2

SKU: SER.205-14

SER205-14 Imperial Bearing Insert and Snap Ring 7/8 inch Bore 52mm Outside Dia

SER205-14 Imperial Bearing Insert and Snap Ring 7/8 inch Bore 52mm Outside Dia
$34.15 ex VAT
$34.15 ex VAT
Sale Sold out

In stock

Price Break
3+ $22.88
4+ $21.59
9+ $21.33
19+ $21.08
49+ $20.82
99+ $20.56
499+ $19.28
999+ $19.02
1999+ $18.76
2999+ $18.51
4999+ $17.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
22.23mm = 0.875 (7/8) inch
Outside Diameter:
52mm
Style:
SER
Technical
d 7/8 inch
D 52mm
Bi 34.9mm
Be 19.1mm
n 13.1mm
m 21.8mm
E 15.29mm
a 1.07mm
h 5.2mm
R 5.74mm
J 2.46mm
P 57.9mm
G 5.6mm
Grub screw 1/4"-28UNF
Weight 0.27 kg
Dynamic load 1100 kgf
Static load 710 kgf
