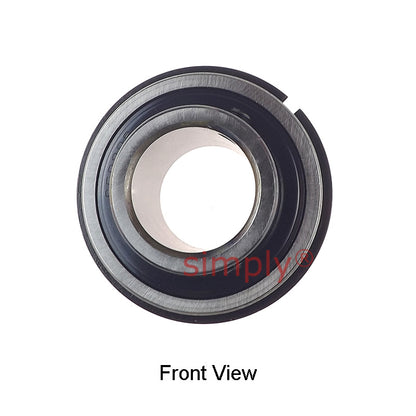

• SER206 Metric Bearing Insert and Snap Ring 30mm Bore 62mm Outside Dia
  • SER206 Metric Bearing Insert and Snap Ring 30mm Bore 62mm Outside Dia
1 2

SKU: SER.206

SER206 Metric Bearing Insert and Snap Ring 30mm Bore 62mm Outside Dia

SER206 Metric Bearing Insert and Snap Ring 30mm Bore 62mm Outside Dia
$17.66 ex VAT
$17.66 ex VAT
Sale Sold out

In stock

Price Break
3+ $11.83
4+ $11.16
9+ $11.03
19+ $10.90
49+ $10.77
99+ $10.63
499+ $9.97
999+ $9.84
1999+ $9.70
2999+ $9.57
4999+ $9.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
62mm
Style:
SER
Technical
d 30mm
D 62mm
Bi 38.1mm
Be 22.2mm
n 15.9mm
m 22.2mm
E 17.02mm
a 1.65mm
h 5.6mm
R 5.92mm
J 3.28mm
P 67.7mm
G 5.6mm
Grub screw 1/4"-28UNF
Weight 0.39 kg
Dynamic load 1530 kgf
Static load 1020 kgf
Rec max speed 5300 rpm
