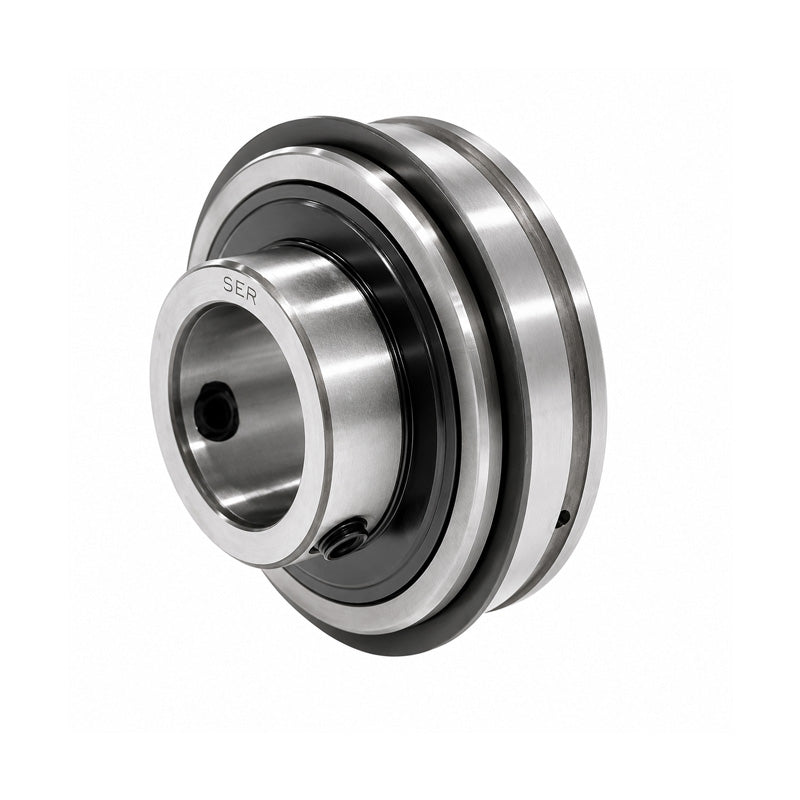

• SER207-23 Imperial Bearing Insert and Snap Ring 1-7/16 inch Bore 72mm Outside Dia
1 1

SKU: SER.207-23

SER207-23 Imperial Bearing Insert and Snap Ring 1-7/16 inch Bore 72mm Outside Dia

SER207-23 Imperial Bearing Insert and Snap Ring 1-7/16 inch Bore 72mm Outside Dia
$37.02 ex VAT
$37.02 ex VAT
Sale Sold out

In stock

Price Break
3+ $24.79
4+ $23.40
9+ $23.12
19+ $22.84
49+ $22.56
99+ $22.29
499+ $20.89
999+ $20.61
1999+ $20.34
2999+ $20.06
4999+ $19.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Outside Diameter:
72mm
Style:
SER
Technical
d 1-7/16 inch
D 72mm
Bi 42.9mm
Be 23.8mm
n 17.5mm
m 25.4mm
E 18.62mm
a 1.65mm
h 5.6mm
R 6.72mm
J 3.28mm
P 78.6mm
G 6.5mm
Grub screw 5/16"-24UNF
Weight 0.56 kg
Dynamic load 2020 kgf
Static load 1390 kgf
