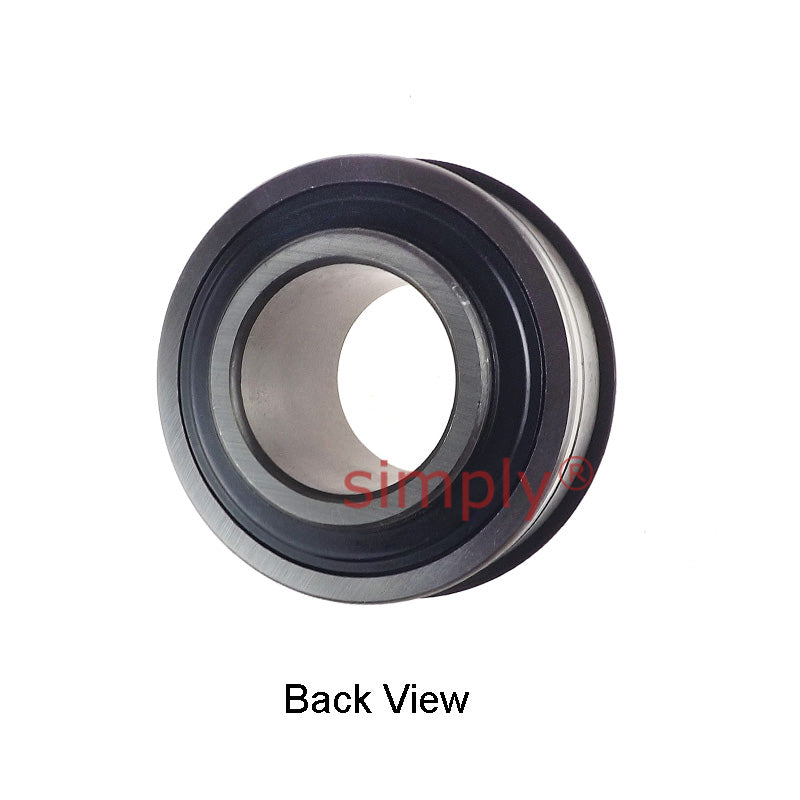

• SER208 Metric Bearing Insert and Snap Ring 40mm Bore 80mm Outside Dia
  • SER208 Metric Bearing Insert and Snap Ring 40mm Bore 80mm Outside Dia
1 2

SKU: SER.208

SER208 Metric Bearing Insert and Snap Ring 40mm Bore 80mm Outside Dia

SER208 Metric Bearing Insert and Snap Ring 40mm Bore 80mm Outside Dia
$26.83 ex VAT
$26.83 ex VAT
Sale Sold out

In stock

Price Break
3+ $17.97
4+ $16.96
9+ $16.75
19+ $16.55
49+ $16.35
99+ $16.15
499+ $15.14
999+ $14.94
1999+ $14.74
2999+ $14.53
4999+ $14.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
80mm
Style:
SER
Technical
d 40mm
D 80mm
Bi 49.2mm
Be 27.8mm
n 19mm
m 30.2mm
E 22.62mm
a 1.65mm
h 6.4mm
R 8.72mm
J 3.28mm
P 86.6mm
G 8mm
Grub screw M8x1.0
Weight 0.72 kg
Dynamic load 2208 kgf
Static load 1590 kgf
Rec max speed 4000 rpm
