• SER209 Metric Bearing Insert and Snap Ring 45mm Bore 85mm Outside Dia
  • SER209 Metric Bearing Insert and Snap Ring 45mm Bore 85mm Outside Dia
1 2

SKU: SER.209

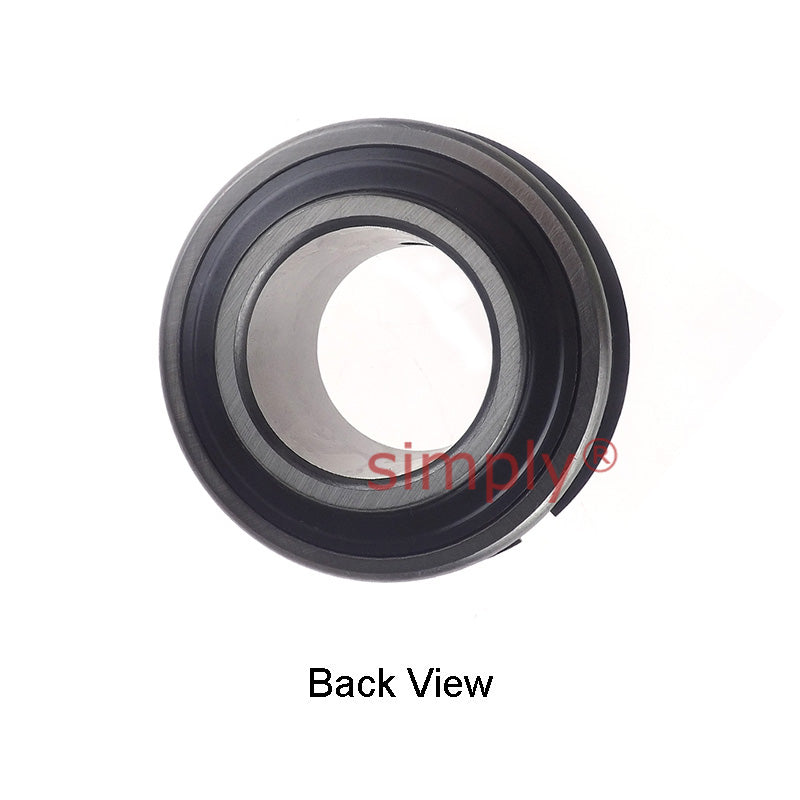

SER209 Metric Bearing Insert and Snap Ring 45mm Bore 85mm Outside Dia

SER209 Metric Bearing Insert and Snap Ring 45mm Bore 85mm Outside Dia
$32.79 ex VAT
$32.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $21.97
4+ $20.73
9+ $20.49
19+ $20.24
49+ $19.99
99+ $19.75
499+ $18.51
999+ $18.27
1999+ $18.02
2999+ $17.77
4999+ $17.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Style:
SER
Technical
d 45mm
D 85mm
Bi 49.2mm
Be 27.8mm
n 19mm
m 30.2mm
E 22.62mm
a 1.65mm
h 6.4mm
R 8.72mm
J 3.28mm
P 91.6mm
G 8mm
Grub screw M8x1.0
Weight 0.90 kg
Dynamic load 2560 kgf
Static load 1810 kgf
Rec max speed 3700 rpm
