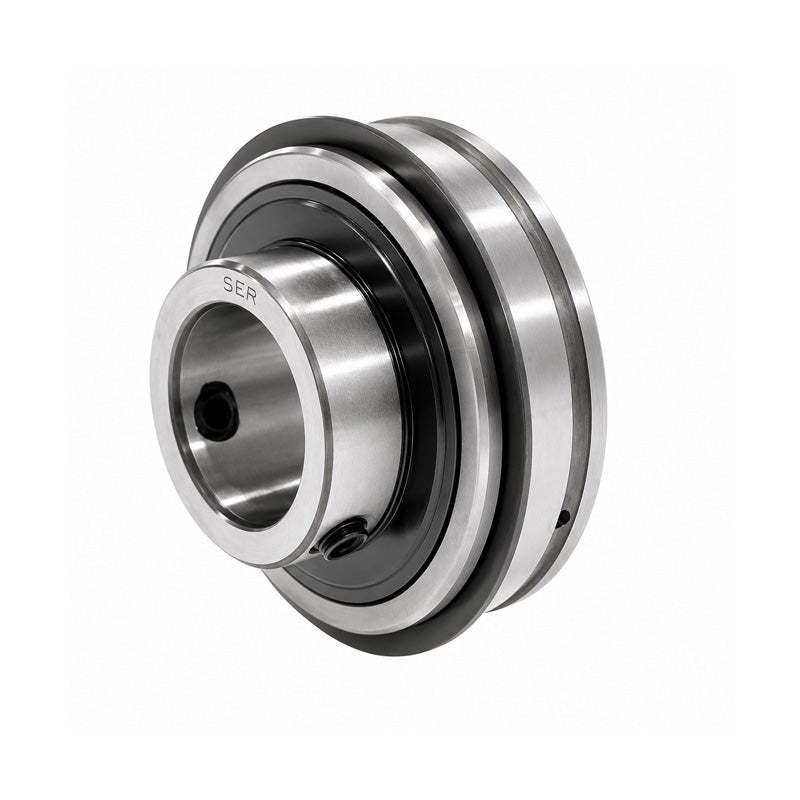

• SER210-30 Imperial Bearing Insert and Snap Ring 1-7/8 inch Bore 90mm Outside Dia
1 1

SKU: SER.210-30

SER210-30 Imperial Bearing Insert and Snap Ring 1-7/8 inch Bore 90mm Outside Dia

SER210-30 Imperial Bearing Insert and Snap Ring 1-7/8 inch Bore 90mm Outside Dia
$46.97 ex VAT
$46.97 ex VAT
Sale Sold out

In stock

Price Break
3+ $31.46
4+ $29.70
9+ $29.34
19+ $28.99
49+ $28.64
99+ $28.28
499+ $26.51
999+ $26.16
1999+ $25.81
2999+ $25.45
4999+ $24.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
47.63mm = 1.875 (1-7/8) inch
Outside Diameter:
90mm
Style:
SER
Technical
d 1-7/8 inch
D 90mm
Bi 51.6mm
Be 28.6mm
n 19mm
m 32.6mm
E 22.62mm
a 2.41mm
h 7.5mm
R 8.32mm
J 3.28mm
P 96.5mm
G 9.5mm
Grub screw 3/8"-24UNF
Weight 0.93 kg
Dynamic load 2750 kgf
Static load 2020 kgf
