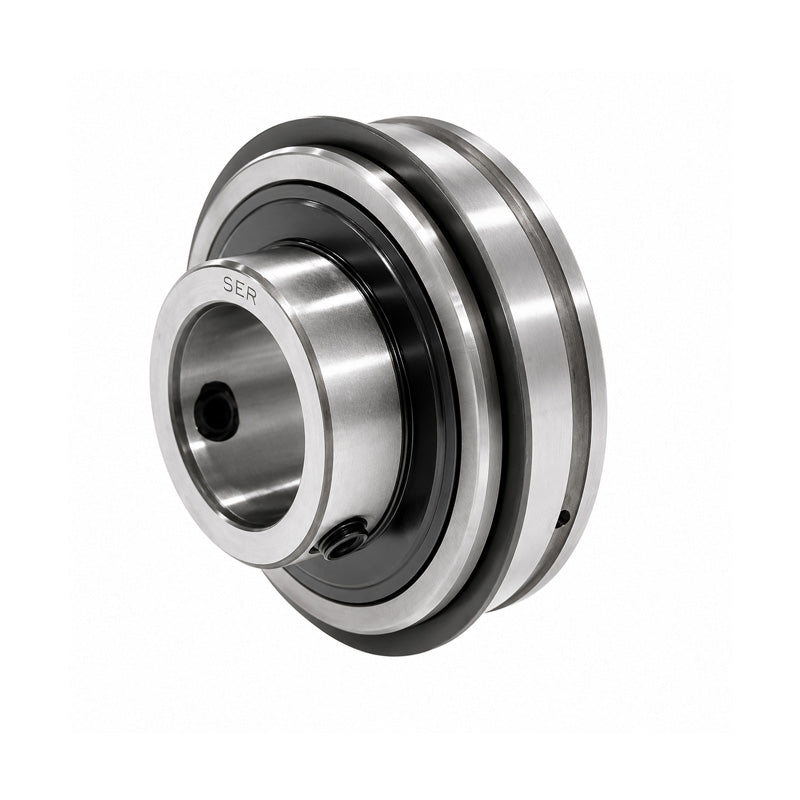

• SER210-31 Imperial Bearing Insert and Snap Ring 1-15/16 inch Bore 90mm Outside Dia
1 1

SKU: SER.210-31

SER210-31 Imperial Bearing Insert and Snap Ring 1-15/16 inch Bore 90mm Outside Dia

SER210-31 Imperial Bearing Insert and Snap Ring 1-15/16 inch Bore 90mm Outside Dia
$62.62 ex VAT
$62.62 ex VAT
Sale Sold out

In stock

Price Break
3+ $41.95
4+ $39.59
9+ $39.12
19+ $38.65
49+ $38.18
99+ $37.71
499+ $35.35
999+ $34.88
1999+ $34.41
2999+ $33.94
4999+ $32.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Outside Diameter:
90mm
Style:
SER
Technical
d 1-15/16 inch
D 90mm
Bi 51.6mm
Be 28.6mm
n 19mm
m 32.6mm
E 22.62mm
a 2.41mm
h 7.5mm
R 8.32mm
J 3.28mm
P 96.5mm
G 9.5mm
Grub screw 3/8"-24UNF
Weight 0.93 kg
Dynamic load 2750 kgf
Static load 2020 kgf
