SKU: SER.211-32

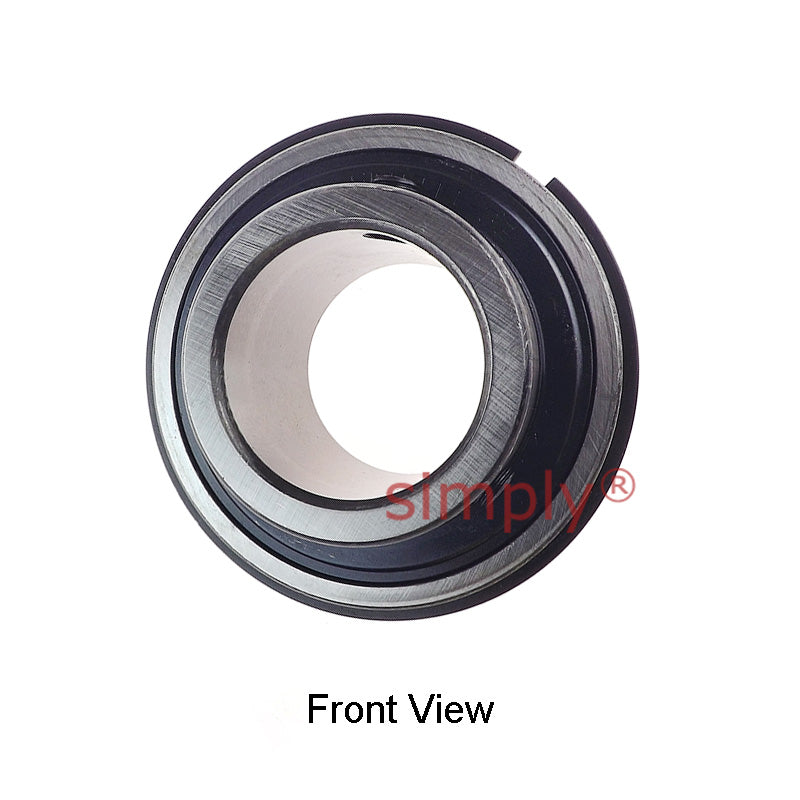

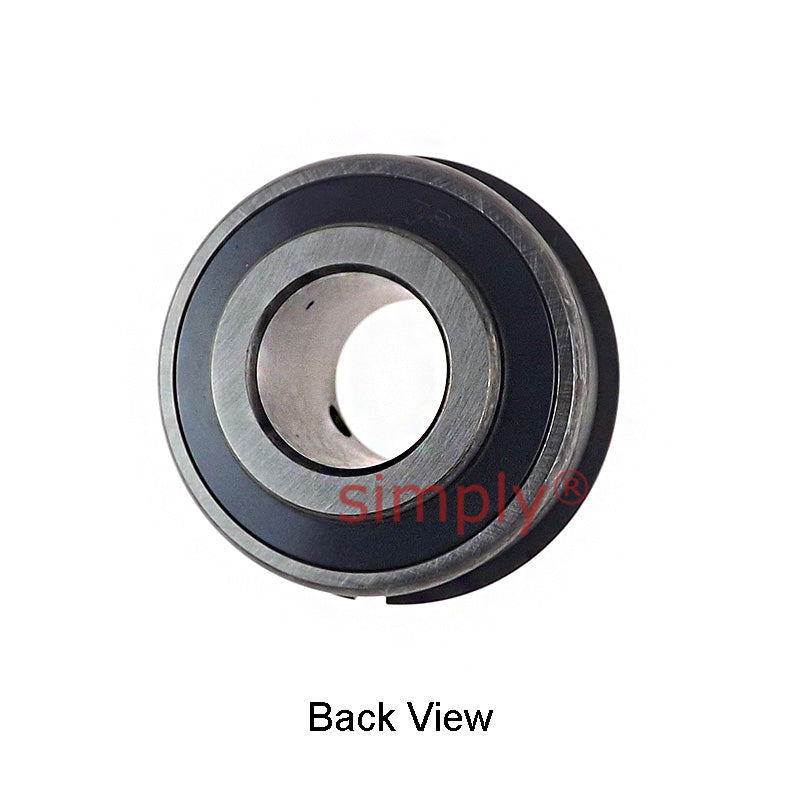

SER211-32 Imperial Bearing Insert and Snap Ring 2 inch Bore 100mm Outside Dia

SER211-32 Imperial Bearing Insert and Snap Ring 2 inch Bore 100mm Outside Dia
$46.78 ex VAT
$46.78 ex VAT
Sale Sold out

In stock

Price Break
3+ $31.34
4+ $29.58
9+ $29.22
19+ $28.87
49+ $28.52
99+ $28.17
499+ $26.41
999+ $26.06
1999+ $25.70
2999+ $25.35
4999+ $24.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50.8mm = 2 inch
Outside Diameter:
100mm
Style:
SER
Technical
d 2 inch
D 100mm
Bi 55.6mm
Be 30.2mm
n 22.2mm
m 33.4mm
E 24.22mm
a 2.41mm
h 7.5mm
R 9.12mm
J 3.28mm
P 106.5mm
G 9.5mm
Grub screw 3/8"-24UNF
Weight 1.28 kg
Dynamic load 3400 kgf
Static load 2550 kgf
