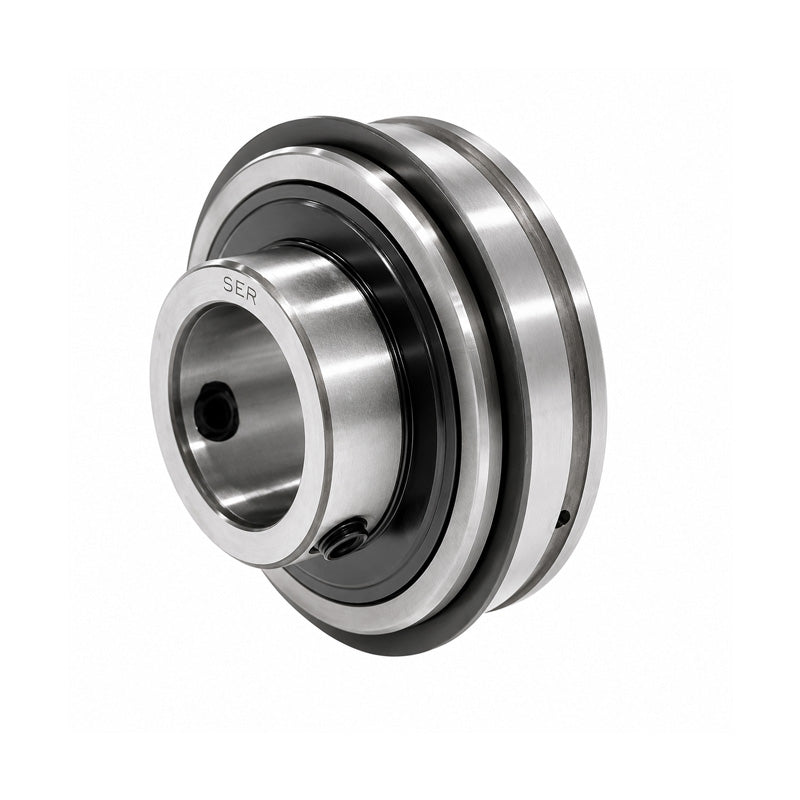

• SER212 Metric Bearing Insert and Snap Ring 60mm Bore 110mm Outside Dia
1 1

SKU: SER.212

SER212 Metric Bearing Insert and Snap Ring 60mm Bore 110mm Outside Dia

SER212 Metric Bearing Insert and Snap Ring 60mm Bore 110mm Outside Dia
$56.89 ex VAT
$56.89 ex VAT
Sale Sold out

In stock

Price Break
3+ $38.11
4+ $35.97
9+ $35.54
19+ $35.11
49+ $34.68
99+ $34.26
499+ $32.11
999+ $31.69
1999+ $31.26
2999+ $30.83
4999+ $29.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
60mm
Outside Diameter:
110mm
Style:
SER
Technical
d 60mm
D 110mm
Bi 65.1mm
Be 31.8mm
n 25.4mm
m 39.7mm
E 25.82mm
a 2.41mm
h 7.5mm
R 9.92mm
J 3.28mm
P 116.6mm
G 11.1mm
Grub screw M10x1.0
Weight 1.71 kg
Dynamic load 4100 kgf
Static load 3150 kgf
