SKU: SES212-SNR

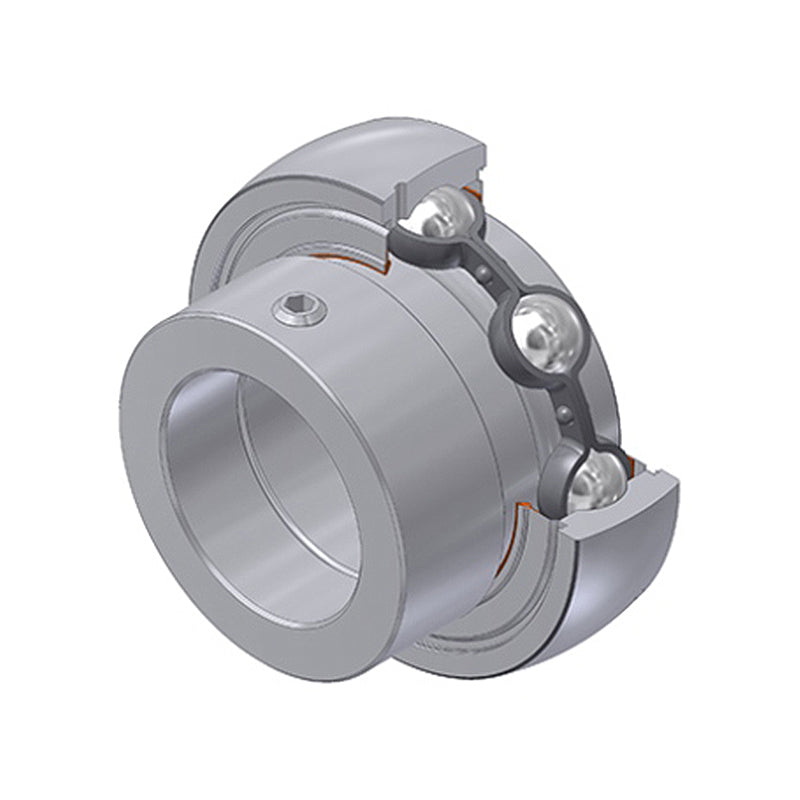

SNR SES212 Metric Stainless Flatback Spherical Outer Food Safe Bearing Insert 60mm Bore 110mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
SNR SES Flatback Spherical Outer Bearing Insert with Eccentric Collar: This bearing insert is meticulously crafted for food-related applications, featuring food-grade grease filling and approval for direct contact with foodstuffs. Each stainless steel insert includes a single lip seal on both sides and a narrow inner ring design. It incorporates a stainless steel sheet steel retainer with a vulcanized seal, with the axially preloaded seal lip made from silicone and positioned behind a protective edge. This insert is suitable for normal environmental conditions and supports medium to high rotation speeds, ensuring reliable performance in food processing environments.
Benefits: High-quality brand, high-performance, precision-engineered
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M10x1.25
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 53.1mm
- Style:
- SES
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| C | 22mm |
| B | 37.1mm |
| B1 | 53.1mm |
| B2 | 22.3mm |
| d1 | 84.2mm |
| S | 11mm |
| m | 8mm |
| C1 | 7.6mm |
| r min | 1mm |
| G | M10x1.25 |
| Wrench Size | 5mm |
| Set screw torque | 18.7 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 41kN |
| Static load rating C0 | 31.5kN |
| Weight | 1.3kg |
