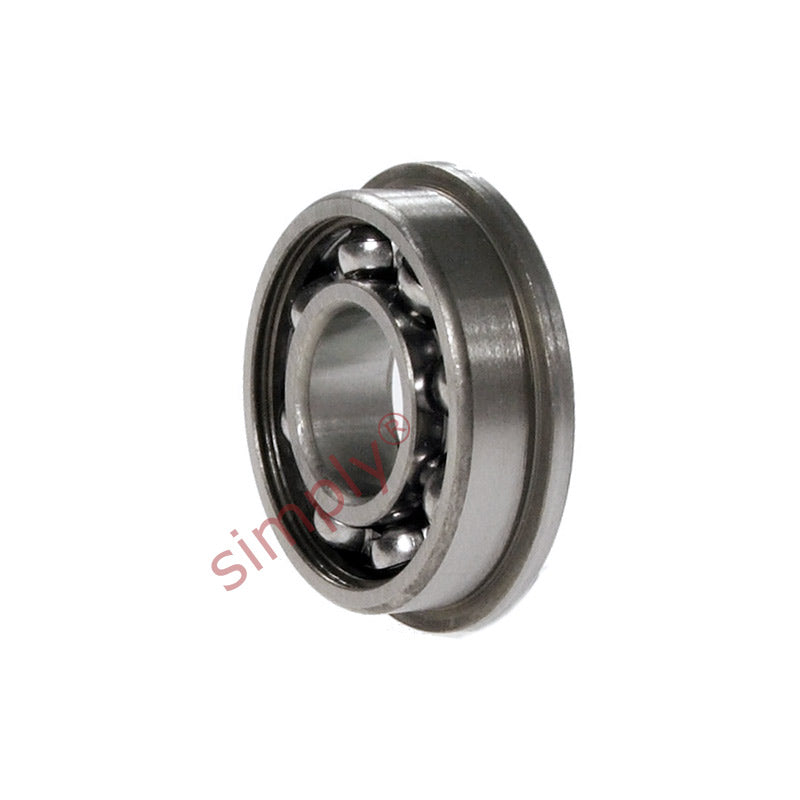

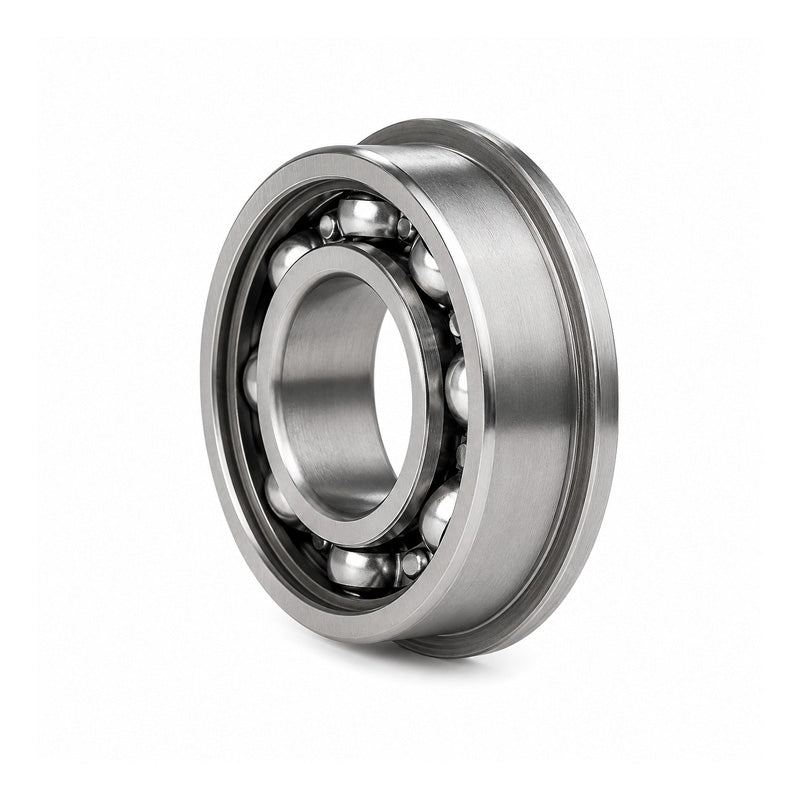

SF6803 Budget Stainless Steel Open Flanged Thin Section Deep Groove Ball Bearing 17x26x5mm

SKU: SF.6803

SF6803 Budget Stainless Steel Open Flanged Thin Section Deep Groove Ball Bearing 17x26x5mm

$15.64 ex VAT
$15.64
ex VAT
Not in stock

Quantity Price Breaks

5 $13.92
9 $13.14
19 $12.98
24 $12.82
49 $12.67
74 $12.51
99 $11.73
199 $11.57
249 $11.42
499 $11.26
999 $10.95
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SF6803 Budget Stainless Steel Open Flanged Thin Section Deep Groove Ball Bearing 17x26x5mm
SKU: SF.6803

SF6803 Budget Stainless Steel Open Flanged Thin Section Deep Groove Ball Bearing 17x26x5mm

$15.64 ex VAT
$15.64
ex VAT

Description

Stainless Steel Flanged Deep Groove Ball Bearings: Manufactured in stainless steel to the same principal sizes as standard chrome steel bearings. They have an additional flange to allow fitting into housings flush against the shoulder of the flange. They are often used on steel tracks as guides and supports
Benefits: Cost effective replacement bearing, Flanged design, Higher corrosion resistance
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets.

Technical

Inside diameter d = 17mm
Outside diameter D = 26mm
Bearing width B = 5mm
Flange diameter P = 28mm
Flange width w = 1.1mm
Radius min = 0.3mm
