SKU: SF042AR0

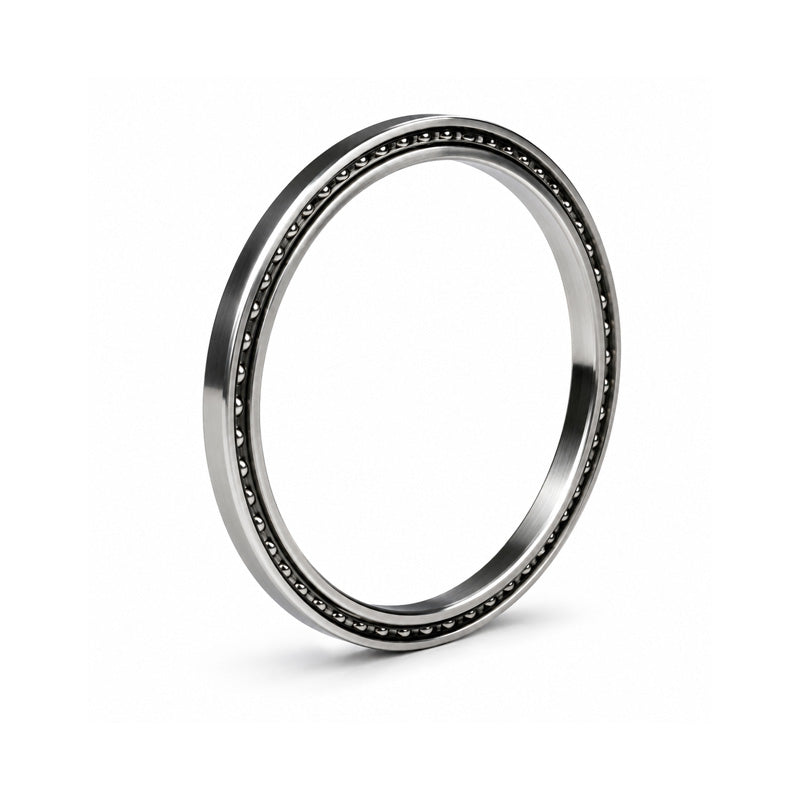

Silverthin SF042AR0 Thin Section Angular Contact Ball Bearing 4.25x5.75x0.75 inch - Allow 7-10 Days
Silverthin SF042AR0 Thin Section Angular Contact Ball Bearing 4.25x5.75x0.75 inch - Allow 7-10 Days
Equivalent to: KF042AR0
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 107.95mm = 4-1/4 inch
- Outside Diameter:
- 146.05mm = 5-3/4 inch
- Width:
- 19.05mm = 3/4 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 4.25 inch |
|---|---|
| D | 5.75 inch |
| Width | 0.75 inch |
| L1 | 4.805 inch |
| L2 | 5.195 inch |
| L3 | 5.365 inch |
| Static Radial Load | 29.358 kN |
| Dynamic Radial Load | 13.336 kN |
| Static Thrust Load | 84.756 kN |
| Dynamic Thrust Load | 38.401 kN |
| Weight | 0.9072kg |
