SKU: SF045CP0

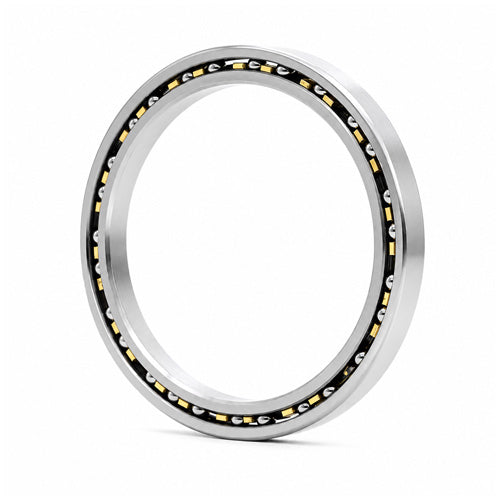

Silverthin SF045CP0 Thin Section Radial Contact Ball Bearing 4.5x6x0.75 inch - Allow 7-10 Days
Silverthin SF045CP0 Thin Section Radial Contact Ball Bearing 4.5x6x0.75 inch - Allow 7-10 Days
Equivalent to: KF045CP0 L10VA408 CSCF045 NBC11419 FPCF408
Out of stock
Description
Description
|
Silverthin Thin Section Radial Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with deep ball grooves to withstand high loads. Although these bearings are used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal for applications with radial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 114.3mm = 4-1/2 inch
- Outside Diameter:
- 152.4mm = 6 inch
- Width:
- 19.05mm = 3/4 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 4.5 inch |
|---|---|
| D | 6 inch |
| Width | 0.75 inch |
| L1 | 5.06 inch |
| L2 | 5.445 inch |
| L3 | 5.615 inch |
| Static Radial Load | 26.409 kN |
| Dynamic Radial Load | 13.011 kN |
| Weight | 0.9525 kg |
