SKU: SF045XP0

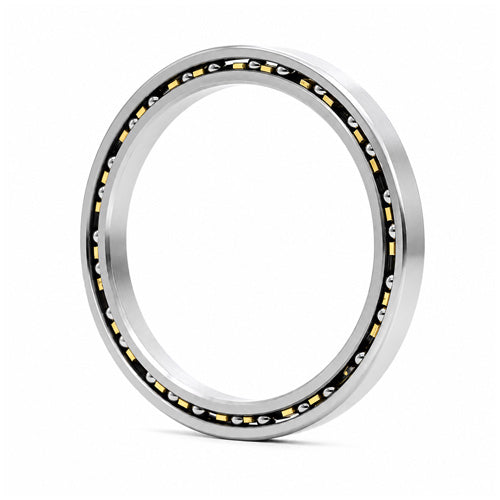

Silverthin SF045XP0 Thin Section Four Point Contact Ball Bearing 4.5x6x0.75 inch - Allow 7-10 Days
Silverthin SF045XP0 Thin Section Four Point Contact Ball Bearing 4.5x6x0.75 inch - Allow 7-10 Days
Equivalent to: KF045XP0 L18VA408 CSXF045 NBX11419 FPXF408
Out of stock
Description
Description
|
Silverthin Thin Section Four-Point Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with gothic arch raceways creating four contact points between the balls and the raceways. This design is excellent for moment loading and reversing axial loading. These bearings can be used for other light loading conditions but is not recommended for pure radial loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal of moment loading, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 114.3mm = 4-1/2 inch
- Outside Diameter:
- 152.4mm = 6 inch
- Width:
- 19.05mm = 3/4 inch
- Seals / Shields:
- None
- Clearance:
- * Standard

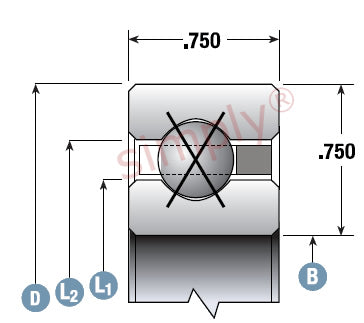

Technical
Technical
| B | 4.5 inch |
|---|---|
| D | 6 inch |
| Width | 0.75 inch |
| L1 | 5.06 inch |
| L2 | 5.445 inch |
| L3 | 5.615 inch |
| Static Radial Load | 26.409 kN |
| Dynamic Radial Load | 13.011 kN |
| Static Thrust Load | 65.896 kN |
| Dynamic Thrust Load | 32.481 kN |
| Static Moment Load | 69.17 kN |
| Dynamic Moment Load | 34.073 kN |
| Weight | 0.9525kg |
