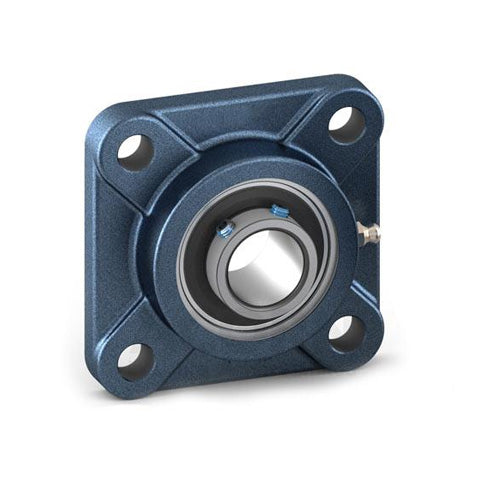

• RHP SF1-1/2 Four Bolt Square Cast Iron Flange Housing and 1-1/2 inch Bore Grub Screw Full Width Insert
1 1

SKU: SF1.1/2-RHP

RHP SF1-1/2 Four Bolt Square Cast Iron Flange Housing and 1-1/2 inch Bore Grub Screw Full Width Insert

RHP SF1-1/2 Four Bolt Square Cast Iron Flange Housing and 1-1/2 inch Bore Grub Screw Full Width Insert
$84.03 ex VAT
$84.03 ex VAT
Sale Sold out

In stock

Price Break
10+ $56.29
20+ $53.12
30+ $52.49
40+ $51.86
50+ $51.23
75+ $50.59
100+ $47.43
200+ $46.80
250+ $46.17
500+ $45.53
1000+ $44.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
SF
Bolt Hole Centres:
101.5mm = 3.996 inch
Technical
Bore 1-1/2 inch
L 5.126 inch
H 4000 inch
J 3.996 inch
G 0.5 inch
A 1.374
A1 2.133 inch
A4 0.5 inch
B 1.938
s 0.752 inch
d1 2.075 inch
Dynamic load Cr 32500 N
Static Load Cor 19900 N
Rec max speed 4000 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1040-1-1/2G+insonly">1040-1-1/2G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
