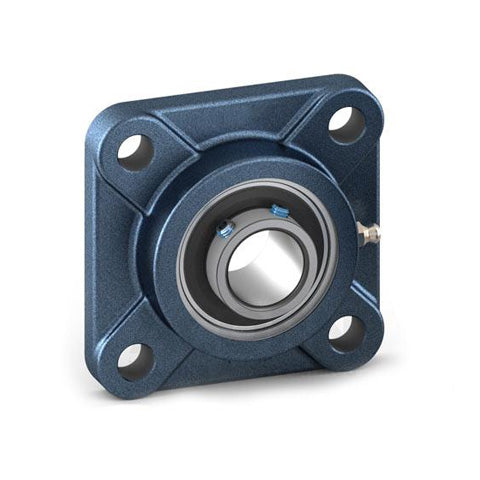

• RHP SF1-1/8 Four Bolt Square Cast Iron Flange Housing and 1-1/8 inch Bore Grub Screw Full Width Insert
1 1

SKU: SF1.1/8-RHP

RHP SF1-1/8 Four Bolt Square Cast Iron Flange Housing and 1-1/8 inch Bore Grub Screw Full Width Insert

RHP SF1-1/8 Four Bolt Square Cast Iron Flange Housing and 1-1/8 inch Bore Grub Screw Full Width Insert
$64.18 ex VAT
$64.18 ex VAT
Sale Sold out

In stock

Price Break
10+ $42.98
20+ $40.57
30+ $40.09
40+ $39.60
50+ $39.12
75+ $38.64
100+ $36.22
200+ $35.74
250+ $35.26
500+ $34.77
1000+ $33.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Style:
SF
Bolt Hole Centres:
82.5mm = 3.248 inch
Technical
Bore 1-1/8 inch
L 4.252 inch
H 3.252 inch
J 3.248 inch
G 0.4375 inch
A 1.173
A1 1.662 inch
A4 0.5 inch
B 1.5
s 0.627 inch
d1 1.575 inch
Dynamic load Cr 19500 N
Static Load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.3 kg
Insert <a href="advanced_search_result.php?keywords=1030-1-1/8G+insonly">1030-1-1/8G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
