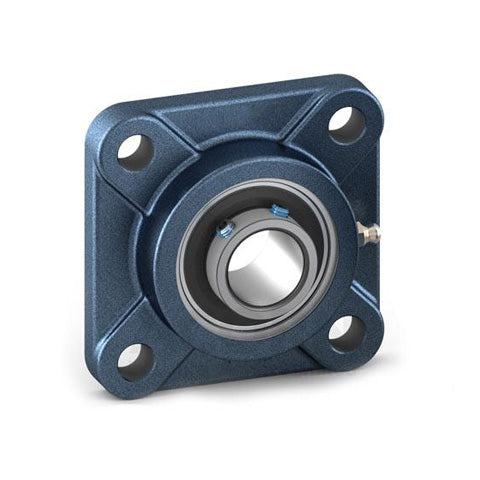

• RHP SF1-5/8 Four Bolt Square Cast Iron Flange Housing and 1-5/8 inch Bore Grub Screw Full Width Insert
1 1

SKU: SF1.5/8-RHP

RHP SF1-5/8 Four Bolt Square Cast Iron Flange Housing and 1-5/8 inch Bore Grub Screw Full Width Insert

RHP SF1-5/8 Four Bolt Square Cast Iron Flange Housing and 1-5/8 inch Bore Grub Screw Full Width Insert
$97.21 ex VAT
$97.21 ex VAT
Sale Sold out

In stock

Price Break
10+ $65.12
20+ $61.46
30+ $60.73
40+ $59.99
50+ $59.26
75+ $58.53
100+ $54.87
200+ $54.14
250+ $53.41
500+ $52.68
1000+ $51.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
41.28mm = 1.625 (1-5/8) inch
Style:
SF
Bolt Hole Centres:
105.004mm = 4.134 inch
Technical
Bore 1-5/8 inch
L 5.374 inch
H 4.374 inch
J 4.134 inch
G 0.625 inch
A 1.39
A1 2.133 inch
A4 0.563 inch
B 1.938
s 0.752 inch
d1 2.256 inch
Dynamic load Cr 32500 N
Static Load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.6 kg
Insert <a href="advanced_search_result.php?keywords=1045-1-5/8G+insonly">1045-1-5/8G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
