SKU: SF1.7/16DEC-RHP

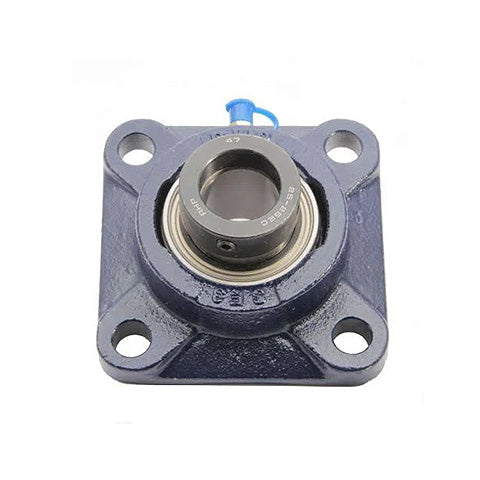

RHP SF1-7/16DEC Four Bolt Square Cast Iron Flange Housing and 1-7/16 inch Bore Eccentric Collar Full Width Insert
RHP SF1-7/16DEC Four Bolt Square Cast Iron Flange Housing and 1-7/16 inch Bore Eccentric Collar Full Width Insert
Regular price
$88.16
ex VAT
Regular price
Sale price
$88.16
ex VAT
In stock
Price Break
10+
$59.05
20+
$55.74
30+
$55.07
40+
$54.41
50+
$53.75
75+
$53.08
100+
$49.76
200+
$49.10
250+
$48.44
500+
$47.77
1000+
$46.45
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- SF
- Bolt Hole Centres:
- 91.999mm = 3.622 inch
Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| L | 4.626 inch |
| H | 3.752 inch |
| J | 3.622 inch |
| G | 0.5 inch |
| A | 1.236 inch |
| A3 | 2.099 inch |
| A4 | 0.5 inch |
| B3 | 2.015 inch |
| s2 | 0.744 inch |
| d2 | 2.188 inch |
| Dynamic load Cr | 25700 N |
| Static Load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-7/16DECG+insonly">1035-1-7/16DECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
