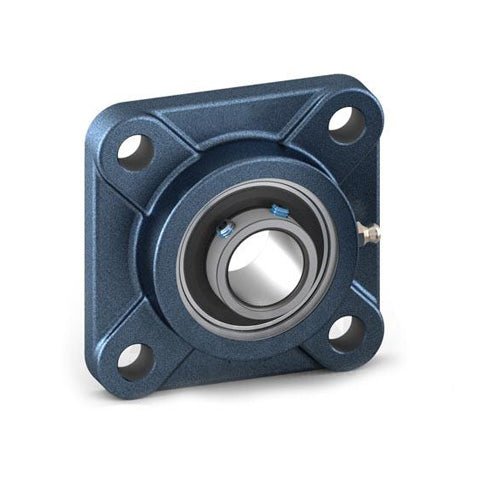

• RHP SF12 Four Bolt Square Cast Iron Flange Housing and 12mm Bore Grub Screw Full Width Insert
1 1

SKU: SF12-RHP

RHP SF12 Four Bolt Square Cast Iron Flange Housing and 12mm Bore Grub Screw Full Width Insert

RHP SF12 Four Bolt Square Cast Iron Flange Housing and 12mm Bore Grub Screw Full Width Insert
$42.88 ex VAT
$42.88 ex VAT
Sale Sold out

In stock

Price Break
10+ $28.72
20+ $27.10
30+ $26.78
40+ $26.46
50+ $26.14
75+ $25.81
100+ $24.20
200+ $23.88
250+ $23.55
500+ $23.23
1000+ $22.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
12mm
Style:
SF
Bolt Hole Centres:
54mm
Technical
Bore 12mm
L 76.2mm
H 52.5mm
J 54mm
G 10mm
A 24.6
A1 32.87mm
A4 9.5mm
B 27.38
s 11.55mm
d1 24.21mm
Dynamic load Cr 9550 N
Static Load Cor 4800 N
Rec max speed 7000 rpm
Weight 0.5 kg
Insert <a href="advanced_search_result.php?keywords=1017-12G+insonly">1017-12G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
