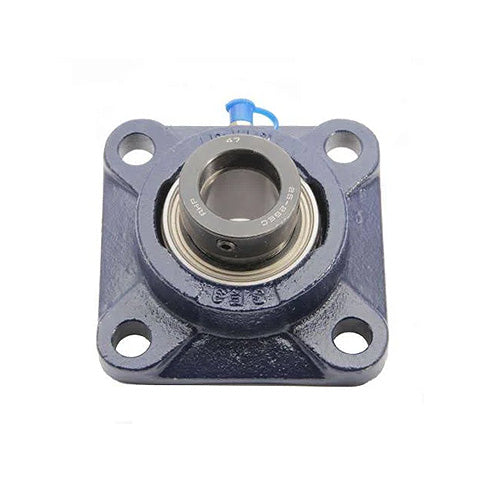

• RHP SF17EC Four Bolt Square Cast Iron Flange Housing and 17mm Bore Eccentric Collar Flat Back Insert
1 1

SKU: SF17EC-RHP

RHP SF17EC Four Bolt Square Cast Iron Flange Housing and 17mm Bore Eccentric Collar Flat Back Insert

RHP SF17EC Four Bolt Square Cast Iron Flange Housing and 17mm Bore Eccentric Collar Flat Back Insert
$43.70 ex VAT
$43.70 ex VAT
Sale Sold out

In stock

Price Break
10+ $29.28
20+ $27.63
30+ $27.30
40+ $26.97
50+ $26.64
75+ $26.31
100+ $24.67
200+ $24.34
250+ $24.01
500+ $23.68
1000+ $23.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
17mm
Style:
SF
Bolt Hole Centres:
54mm
Technical
Bore 17mm
L 76.2mm
H 52.5mm
J 54mm
G 10mm
A 24.6
A2 39.01mm
A4 9.5mm
B2 28.54mm
s1 6.55mm
d2 28.58mm
Dynamic load Cr 9550 N
Static Load Cor 4800 N
Rec max speed 7000 rpm
Weight 0.5 kg
Insert <a href="advanced_search_result.php?keywords=1217-17ECG+insonly">1217-17ECG Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
