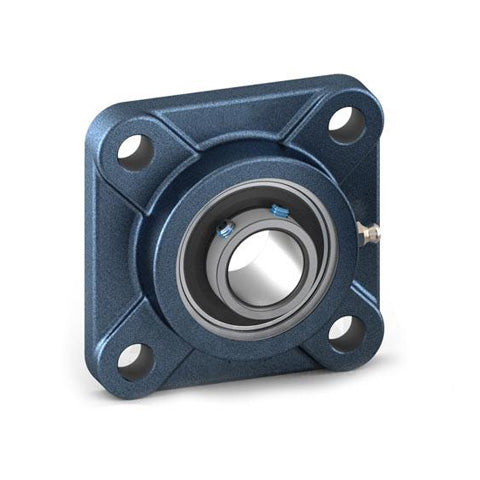

• RHP SF1A Four Bolt Square Cast Iron Flange Housing and 1 inch Bore Grub Screw Flat Back Insert
1 1

SKU: SF1A-RHP

RHP SF1A Four Bolt Square Cast Iron Flange Housing and 1 inch Bore Grub Screw Flat Back Insert

RHP SF1A Four Bolt Square Cast Iron Flange Housing and 1 inch Bore Grub Screw Flat Back Insert
$54.66 ex VAT
$54.66 ex VAT
Sale Sold out

In stock

Price Break
10+ $36.62
20+ $34.56
30+ $34.15
40+ $33.74
50+ $33.33
75+ $32.92
100+ $30.86
200+ $30.45
250+ $30.04
500+ $29.62
1000+ $28.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Style:
SF
Bolt Hole Centres:
70.002mm = 2.756 inch
Technical
Bore 1 inch
L 3.752 inch
H 2.677 inch
J 2.756 inch
G 0.4375 inch
A 1.126
A1 1.529 inch
A4 0.437 inch
B1 1.077 inch
s1 0.298 inch
d1 1.339 inch
Dynamic load Cr 14000 N
Static Load Cor 7880 N
Rec max speed 6250 rpm
Weight 1 kg
Insert <a href="advanced_search_result.php?keywords=1225-1AG+insonly">1225-1AG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
