SKU: SF2.1/2-RHP

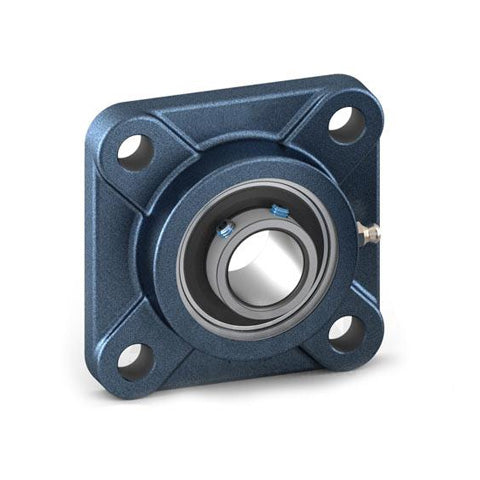

RHP SF2-1/2 Four Bolt Square Cast Iron Flange Housing and 2-1/2 inch Bore Grub Screw Full Width Insert

RHP SF2-1/2 Four Bolt Square Cast Iron Flange Housing and 2-1/2 inch Bore Grub Screw Full Width Insert
Regular price $298.36 ex VAT
Regular price Sale price $298.36 ex VAT
Sale Sold out

In stock

Price Break
10+ $199.85
20+ $188.62
30+ $186.37
40+ $184.13
50+ $181.88
75+ $179.64
100+ $168.41
200+ $166.16
250+ $163.92
500+ $161.67
1000+ $157.18
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-1/2 inch
L 6.87 inch
H 5.886 inch
J 5.63 inch
G 0.625 inch
A 1.874
A1 2.901 inch
A4 0.709 inch
B 2.562
s 1.002 inch
d1 3.244 inch
Dynamic load Cr 57500 N
Static Load Cor 40000 N
Rec max speed 2600 rpm
Weight 4.7 kg
Insert <a href="advanced_search_result.php?keywords=1065-2-1/2G+insonly">1065-2-1/2G Click Here</a>
Casting group 24016
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
