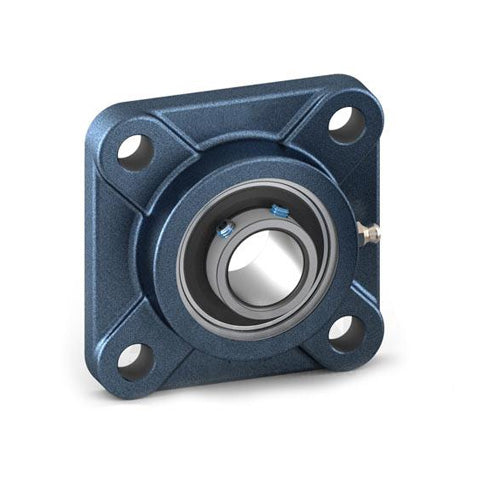

• RHP SF2-1/8 Four Bolt Square Cast Iron Flange Housing and 2-1/8 inch Bore Grub Screw Full Width Insert
1 1

SKU: SF2.1/8-RHP

RHP SF2-1/8 Four Bolt Square Cast Iron Flange Housing and 2-1/8 inch Bore Grub Screw Full Width Insert

RHP SF2-1/8 Four Bolt Square Cast Iron Flange Housing and 2-1/8 inch Bore Grub Screw Full Width Insert
$145.74 ex VAT
$145.74 ex VAT
Sale Sold out

In stock

Price Break
10+ $97.62
20+ $92.14
30+ $91.04
40+ $89.94
50+ $88.85
75+ $87.75
100+ $82.27
200+ $81.17
250+ $80.07
500+ $78.97
1000+ $76.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
53.98mm = 2.125 (2-1/8) inch
Style:
SF
Bolt Hole Centres:
129.997mm = 5.118 inch
Technical
Bore 2-1/8 inch
L 6.374 inch
H 5000 inch
J 5.118 inch
G 0.625 inch
A 1.72
A1 2.532 inch
A4 0.689 inch
B 2.187
s 0.877 inch
d1 2.709 inch
Dynamic load Cr 43500 N
Static Load Cor 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055-2-1/8G+insonly">1055-2-1/8G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
