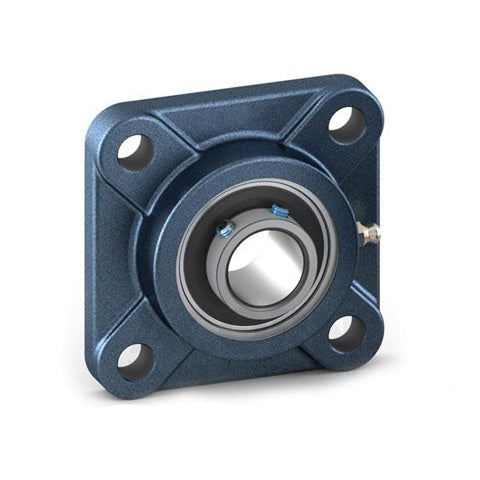

• RHP SF2-15/16 Four Bolt Square Cast Iron Flange Housing and 2-15/16 inch Bore Grub Screw Full Width Insert
1 1

SKU: SF2.15/16-RHP

RHP SF2-15/16 Four Bolt Square Cast Iron Flange Housing and 2-15/16 inch Bore Grub Screw Full Width Insert

RHP SF2-15/16 Four Bolt Square Cast Iron Flange Housing and 2-15/16 inch Bore Grub Screw Full Width Insert
$339.80 ex VAT
$339.80 ex VAT
Sale Sold out

In stock

Price Break
10+ $227.61
20+ $214.82
30+ $212.27
40+ $209.71
50+ $207.15
75+ $204.59
100+ $191.81
200+ $189.25
250+ $186.69
500+ $184.13
1000+ $179.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
74.61mm = 2.937 (2-15/16) inch
Style:
SF
Bolt Hole Centres:
152.4mm = 6 inch
Technical
Bore 2-15/16 inch
L 7.736 inch
H 6.24 inch
J 6 inch
G 0.75 inch
A 2.02
A1 3.185 inch
A4 0.906 inch
B 3.062
s 1.314 inch
d1 3.622 inch
Dynamic load Cr 66000 N
Static Load Cor 49500 N
Rec max speed 2300 rpm
Weight 8.6 kg
Insert <a href="advanced_search_result.php?keywords=1075-2-15/16G+insonly">1075-2-15/16G Click Here</a>
Casting group 12
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
