• RHP SF2-7/8 Four Bolt Square Cast Iron Flange Housing and 2-7/8 inch Bore Grub Screw Full Width Insert
1 1

SKU: SF2.7/8-RHP

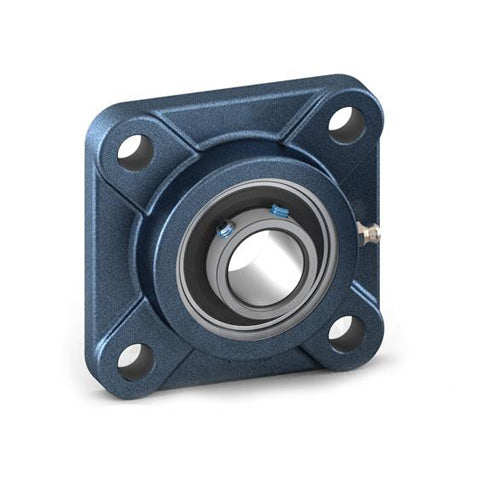

RHP SF2-7/8 Four Bolt Square Cast Iron Flange Housing and 2-7/8 inch Bore Grub Screw Full Width Insert

RHP SF2-7/8 Four Bolt Square Cast Iron Flange Housing and 2-7/8 inch Bore Grub Screw Full Width Insert
$333.56 ex VAT
$333.56 ex VAT
Sale Sold out

In stock

Price Break
10+ $223.43
20+ $210.87
30+ $208.36
40+ $205.85
50+ $203.34
75+ $200.83
100+ $188.28
200+ $185.77
250+ $183.26
500+ $180.75
1000+ $175.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
73.03mm = 2.875 (2-7/8) inch
Style:
SF
Bolt Hole Centres:
152.4mm = 6 inch
Technical
Bore 2-7/8 inch
L 7.736 inch
H 6.24 inch
J 6 inch
G 0.75 inch
A 2.02
A1 3.185 inch
A4 0.906 inch
B 3.062
s 1.314 inch
d1 3.622 inch
Dynamic load Cr 66000 N
Static Load Cor 49500 N
Rec max speed 2300 rpm
Weight 8.6 kg
Insert <a href="advanced_search_result.php?keywords=1075-2-7/8G+insonly">1075-2-7/8G Click Here</a>
Casting group 12
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
