• RHP SF2 Four Bolt Square Cast Iron Flange Housing and 2 inch Bore Grub Screw Full Width Insert
1 1

SKU: SF2-RHP

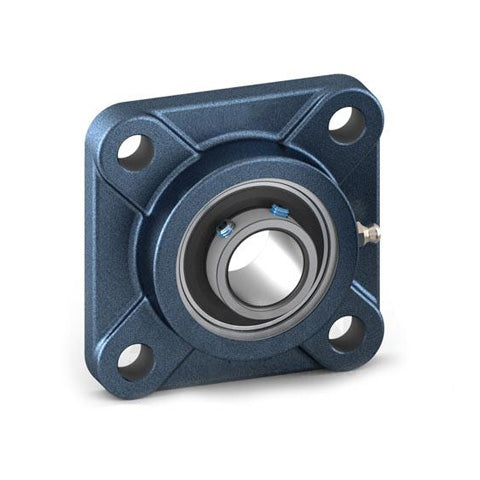

RHP SF2 Four Bolt Square Cast Iron Flange Housing and 2 inch Bore Grub Screw Full Width Insert

RHP SF2 Four Bolt Square Cast Iron Flange Housing and 2 inch Bore Grub Screw Full Width Insert
$144.38 ex VAT
$144.38 ex VAT
Sale Sold out

In stock

Price Break
10+ $96.70
20+ $91.27
30+ $90.18
40+ $89.10
50+ $88.01
75+ $86.92
100+ $81.49
200+ $80.41
250+ $79.32
500+ $78.23
1000+ $76.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Style:
SF
Bolt Hole Centres:
129.997mm = 5.118 inch
Technical
Bore 2 inch
L 6.374 inch
H 5000 inch
J 5.118 inch
G 0.625 inch
A 1.72
A1 2.532 inch
A4 0.689 inch
B 2.187
s 0.877 inch
d1 2.709 inch
Dynamic load Cr 43500 N
Static Load Cor 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
