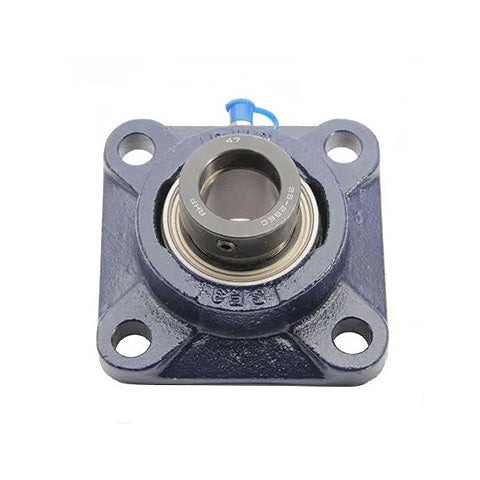

• RHP SF20EC Four Bolt Square Cast Iron Flange Housing and 20mm Bore Eccentric Collar Flat Back Insert
1 1

SKU: SF20EC-RHP

RHP SF20EC Four Bolt Square Cast Iron Flange Housing and 20mm Bore Eccentric Collar Flat Back Insert

RHP SF20EC Four Bolt Square Cast Iron Flange Housing and 20mm Bore Eccentric Collar Flat Back Insert
$44.98 ex VAT
$44.98 ex VAT
Sale Sold out

In stock

Price Break
10+ $30.12
20+ $28.43
30+ $28.09
40+ $27.75
50+ $27.42
75+ $27.08
100+ $25.39
200+ $25.05
250+ $24.71
500+ $24.37
1000+ $23.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Style:
SF
Bolt Hole Centres:
63.5mm
Technical
Bore 20mm
L 85.7mm
H 60.3mm
J 63.5mm
G 10mm
A 27.8
A2 42.42mm
A4 11.1mm
B2 30.92mm
s1 7.56mm
d2 33.3mm
Dynamic load Cr 12800 N
Static Load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1220-20ECG+insonly">1220-20ECG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
