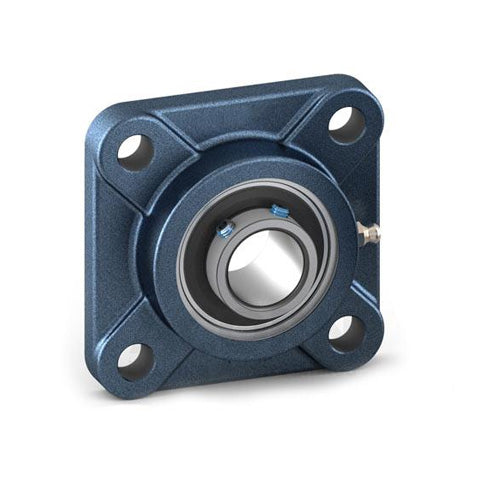

• RHP SF2R Four Bolt Square Cast Iron Flange Housing and 2 inch Bore Grub Screw Full Width Insert
1 1

SKU: SF2R-RHP

RHP SF2R Four Bolt Square Cast Iron Flange Housing and 2 inch Bore Grub Screw Full Width Insert

RHP SF2R Four Bolt Square Cast Iron Flange Housing and 2 inch Bore Grub Screw Full Width Insert
$111.46 ex VAT
$111.46 ex VAT
Sale Sold out

In stock

Price Break
10+ $74.66
20+ $70.47
30+ $69.63
40+ $68.79
50+ $67.95
75+ $67.11
100+ $62.92
200+ $62.08
250+ $61.24
500+ $60.40
1000+ $58.72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Style:
SF
Bolt Hole Centres:
110.998mm = 4.37 inch
Technical
Bore 2 inch
L 5.626 inch
H 4.563 inch
J 4.37 inch
G 0.625 inch
A 1.563
A1 2.383 inch
A4 0.563 inch
B 2.031
s 0.752 inch
d1 2.449 inch
Dynamic load Cr 35000 N
Static Load Cor 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1050-2G+insonly">1050-2G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
