SKU: SF300XP0

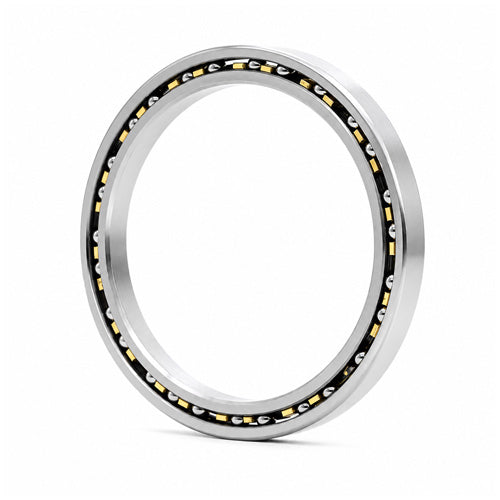

Silverthin SF300XP0 Thin Section Four Point Contact Ball Bearing 30x31.5x0.75 inch - Allow 7-10 Days
Silverthin SF300XP0 Thin Section Four Point Contact Ball Bearing 30x31.5x0.75 inch - Allow 7-10 Days
Equivalent to: KF300XP0
Out of stock
Description
Description
|
Silverthin Thin Section Four-Point Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with gothic arch raceways creating four contact points between the balls and the raceways. This design is excellent for moment loading and reversing axial loading. These bearings can be used for other light loading conditions but is not recommended for pure radial loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal of moment loading, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 762mm = 30 inch
- Outside Diameter:
- 800.1mm = 31-1/2 inch
- Width:
- 19.05mm = 3/4 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 30 inch |
|---|---|
| D | 31.5 inch |
| Width | 0.75 inch |
| L1 | 30.555 inch |
| L2 | 30.945 inch |
| L3 | 31.075 inch |
| Static Radial Load | 154.362 kN |
| Dynamic Radial Load | 42.218 kN |
| Static Thrust Load | 385.941 kN |
| Dynamic Thrust Load | 105.525 kN |
| Static Moment Load | 2373.589 kN |
| Dynamic Moment Load | 649.013 kN |
| Weight | 5.8967kg |
