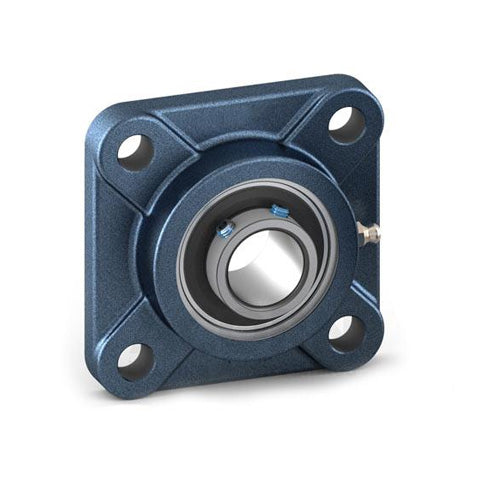

• RHP SF30A Four Bolt Square Cast Iron Flange Housing and 30mm Bore Grub Screw Flat Back Insert
1 1

SKU: SF30A-RHP

RHP SF30A Four Bolt Square Cast Iron Flange Housing and 30mm Bore Grub Screw Flat Back Insert

RHP SF30A Four Bolt Square Cast Iron Flange Housing and 30mm Bore Grub Screw Flat Back Insert
$60.50 ex VAT
$60.50 ex VAT
Sale Sold out

In stock

Price Break
10+ $40.52
20+ $38.24
30+ $37.79
40+ $37.33
50+ $36.88
75+ $36.42
100+ $34.15
200+ $33.69
250+ $33.23
500+ $32.78
1000+ $31.87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
SF
Bolt Hole Centres:
82.5mm
Technical
Bore 30mm
L 108mm
H 82.6mm
J 82.5mm
G 10mm
A 29.8
A1 42.21mm
A4 12.7mm
B1 31.21mm
s1 9.04mm
d1 40mm
Dynamic load Cr 19500 N
Static Load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.3 kg
Insert <a href="advanced_search_result.php?keywords=1230-30AG+insonly">1230-30AG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
