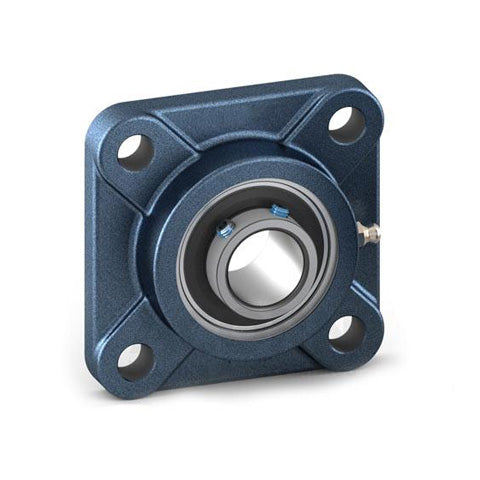

• RHP SF35A Four Bolt Square Cast Iron Flange Housing and 35mm Bore Grub Screw Flat Back Insert
1 1

SKU: SF35A-RHP

RHP SF35A Four Bolt Square Cast Iron Flange Housing and 35mm Bore Grub Screw Flat Back Insert

RHP SF35A Four Bolt Square Cast Iron Flange Housing and 35mm Bore Grub Screw Flat Back Insert
$70.38 ex VAT
$70.38 ex VAT
Sale Sold out

In stock

Price Break
10+ $47.15
20+ $44.50
30+ $43.97
40+ $43.44
50+ $42.91
75+ $42.38
100+ $39.73
200+ $39.20
250+ $38.67
500+ $38.14
1000+ $37.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Style:
SF
Bolt Hole Centres:
92mm
Technical
Bore 35mm
L 117.5mm
H 95.3mm
J 92mm
G 12mm
A 31.4
A1 46.41mm
A4 12.7mm
B1 34.9mm
s1 9.55mm
d1 46.69mm
Dynamic load Cr 25700 N
Static Load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.7 kg
Insert <a href="advanced_search_result.php?keywords=1235-35AG+insonly">1235-35AG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
