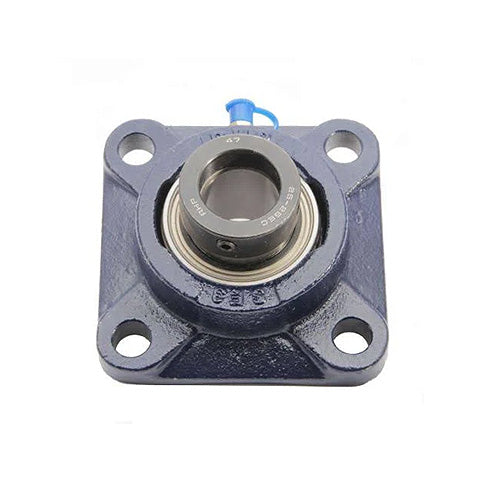

• RHP SF35EC Four Bolt Square Cast Iron Flange Housing and 35mm Bore Eccentric Collar Flat Back Insert
1 1

SKU: SF35EC-RHP

RHP SF35EC Four Bolt Square Cast Iron Flange Housing and 35mm Bore Eccentric Collar Flat Back Insert

RHP SF35EC Four Bolt Square Cast Iron Flange Housing and 35mm Bore Eccentric Collar Flat Back Insert
$71.88 ex VAT
$71.88 ex VAT
Sale Sold out

In stock

Price Break
10+ $48.15
20+ $45.44
30+ $44.90
40+ $44.36
50+ $43.82
75+ $43.28
100+ $40.57
200+ $40.03
250+ $39.49
500+ $38.95
1000+ $37.87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Style:
SF
Bolt Hole Centres:
92mm
Technical
Bore 35mm
L 117.5mm
H 95.3mm
J 92mm
G 12mm
A 31.4
A2 50.34mm
A4 12.7mm
B2 38.88mm
s1 9.55mm
d2 55.58mm
Dynamic load Cr 25700 N
Static Load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.7 kg
Insert <a href="advanced_search_result.php?keywords=1235-35ECG+insonly">1235-35ECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
