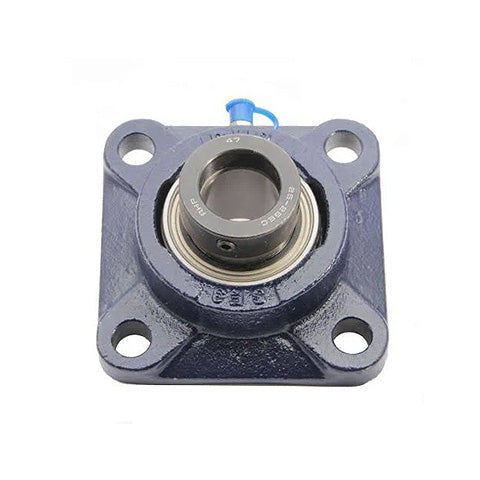

• RHP SF45EC Four Bolt Square Cast Iron Flange Housing and 45mm Bore Eccentric Collar Flat Back Insert
1 1

SKU: SF45EC-RHP

RHP SF45EC Four Bolt Square Cast Iron Flange Housing and 45mm Bore Eccentric Collar Flat Back Insert

RHP SF45EC Four Bolt Square Cast Iron Flange Housing and 45mm Bore Eccentric Collar Flat Back Insert
$100.42 ex VAT
$100.42 ex VAT
Sale Sold out

In stock

Price Break
10+ $67.27
20+ $63.49
30+ $62.73
40+ $61.98
50+ $61.22
75+ $60.46
100+ $56.69
200+ $55.93
250+ $55.17
500+ $54.42
1000+ $52.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Style:
SF
Bolt Hole Centres:
105mm
Technical
Bore 45mm
L 136.5mm
H 111.1mm
J 105mm
G 16mm
A 35.3
A2 56.62mm
A4 14.3mm
B2 43.64mm
s1 11.05mm
d2 63.5mm
Dynamic load Cr 32500 N
Static Load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.6 kg
Insert <a href="advanced_search_result.php?keywords=1245-45ECG+insonly">1245-45ECG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
