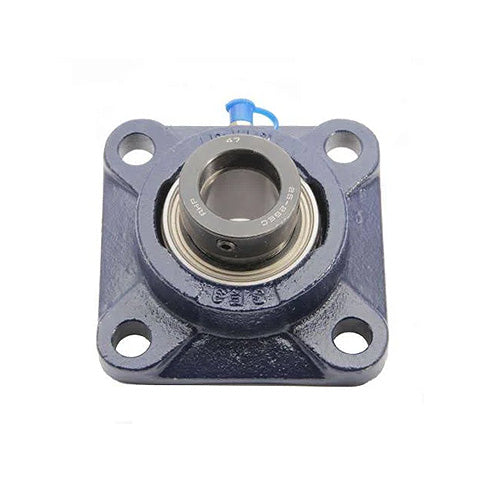

• RHP SF50DEC Four Bolt Square Cast Iron Flange Housing and 50mm Bore Eccentric Collar Full Width Insert
1 1

SKU: SF50DEC-RHP

RHP SF50DEC Four Bolt Square Cast Iron Flange Housing and 50mm Bore Eccentric Collar Full Width Insert

RHP SF50DEC Four Bolt Square Cast Iron Flange Housing and 50mm Bore Eccentric Collar Full Width Insert
$127.28 ex VAT
$127.28 ex VAT
Sale Sold out

In stock

Price Break
10+ $85.25
20+ $80.46
30+ $79.50
40+ $78.55
50+ $77.59
75+ $76.63
100+ $71.84
200+ $70.88
250+ $69.93
500+ $68.97
1000+ $67.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
SF
Bolt Hole Centres:
111mm
Technical
Bore 50mm
L 142.9mm
H 115.9mm
J 111mm
G 16mm
A 39.7mm
A3 66.07mm
A4 14.3mm
B3 62.7mm
s2 24.65mm
d2 69.85mm
Dynamic load Cr 35000 N
Static Load Cor 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1050-50DECG+insonly">1050-50DECG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
