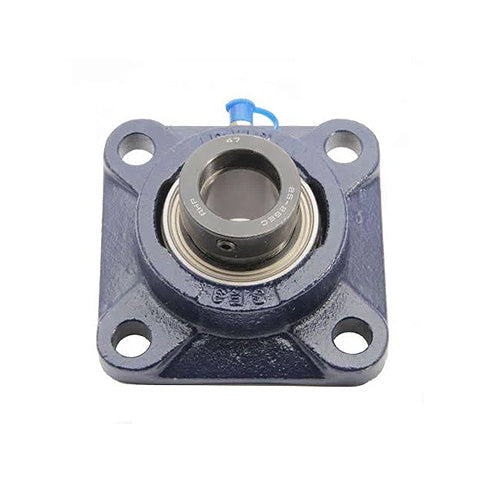

• RHP SF55DEC Four Bolt Square Cast Iron Flange Housing and 55mm Bore Eccentric Collar Full Width Insert
1 1

SKU: SF55DEC-RHP

RHP SF55DEC Four Bolt Square Cast Iron Flange Housing and 55mm Bore Eccentric Collar Full Width Insert

RHP SF55DEC Four Bolt Square Cast Iron Flange Housing and 55mm Bore Eccentric Collar Full Width Insert
$168.47 ex VAT
$168.47 ex VAT
Sale Sold out

In stock

Price Break
10+ $112.84
20+ $106.50
30+ $105.23
40+ $103.97
50+ $102.70
75+ $101.43
100+ $95.09
200+ $93.82
250+ $92.55
500+ $91.29
1000+ $88.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
55mm
Style:
SF
Bolt Hole Centres:
130mm
Technical
Bore 55mm
L 161.9mm
H 127mm
J 130mm
G 16mm
A 43.7mm
A3 74.57mm
A4 17.5mm
B3 71.44mm
s2 27.82mm
d2 76.2mm
Dynamic load Cr 43500 N
Static Load Cor 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055-55DECG+insonly">1055-55DECG Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
