SKU: SFT1.1/2A-RHP

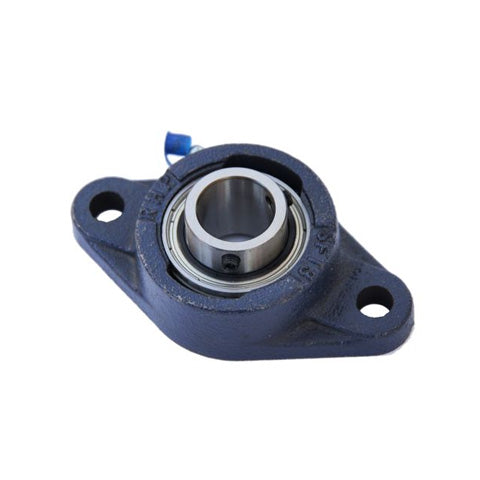

RHP SFT1-1/2A Two Bolt Oval Cast Iron Flange Housing 1-1/2 inch Bore Insert
RHP SFT1-1/2A Two Bolt Oval Cast Iron Flange Housing 1-1/2 inch Bore Insert
Out of stock
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- SFT
- Bolt Hole Centres:
- 143.51mm = 5.65 inch
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| L | 4 inch |
| H | 6.748 inch |
| J | 5.65 inch |
| G | 0.5 inch |
| A | 1.374 inch |
| A1 | 2.133 inch |
| A4 | 0.5 inch |
| B1 | 1.621 inch |
| s1 | 0.435 inch |
| d1 | 2.075 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1240-1-1/2AG+insonly">1240-1-1/2AG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
