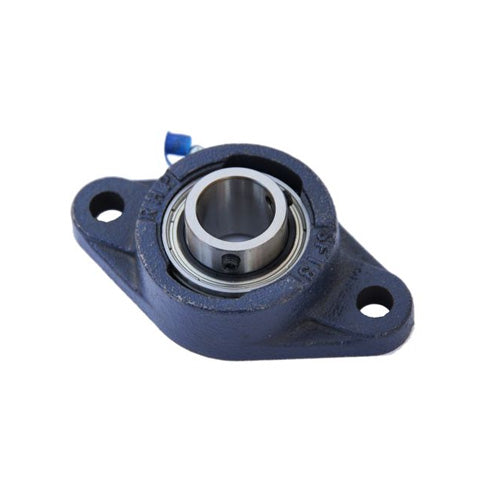

• RHP SFT1-1/4 Two Bolt Oval Cast Iron Flange Housing 1-1/4 inch Bore Insert
1 1

SKU: SFT1.1/4-RHP

RHP SFT1-1/4 Two Bolt Oval Cast Iron Flange Housing 1-1/4 inch Bore Insert

RHP SFT1-1/4 Two Bolt Oval Cast Iron Flange Housing 1-1/4 inch Bore Insert
$73.97 ex VAT
$73.97 ex VAT
Sale Sold out

In stock

Price Break
10+ $49.55
20+ $46.76
30+ $46.21
40+ $45.65
50+ $45.09
75+ $44.54
100+ $41.75
200+ $41.20
250+ $40.64
500+ $40.08
1000+ $38.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
SFT
Bolt Hole Centres:
129.997mm = 5.118 inch
Technical
Bore 1-1/4 inch
L 3.76 inch
H 6.122 inch
J 5.118 inch
G 0.5 inch
A 1.236 inch
A1 1.827 inch
A4 0.5 inch
B 1.688 inch
s 0.69 inch
d1 1.838 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.4 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-1/4G+insonly">1035-1-1/4G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
