SKU: SFT1.1/4A-RHP

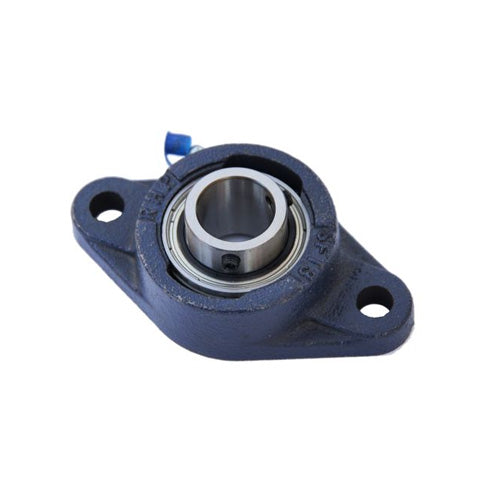

RHP SFT1-1/4A Two Bolt Oval Cast Iron Flange Housing 1-1/4 inch Bore Insert

RHP SFT1-1/4A Two Bolt Oval Cast Iron Flange Housing 1-1/4 inch Bore Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/4 inch
L 3.76 inch
H 6.122 inch
J 5.118 inch
G 0.5 inch
A 1.236 inch
A1 1.827 inch
A4 0.5 inch
B1 1.374 inch
s1 0.376 inch
d1 1.838 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.4 kg
Insert <a href="advanced_search_result.php?keywords=1235-1-1/4AG+insonly">1235-1-1/4AG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
