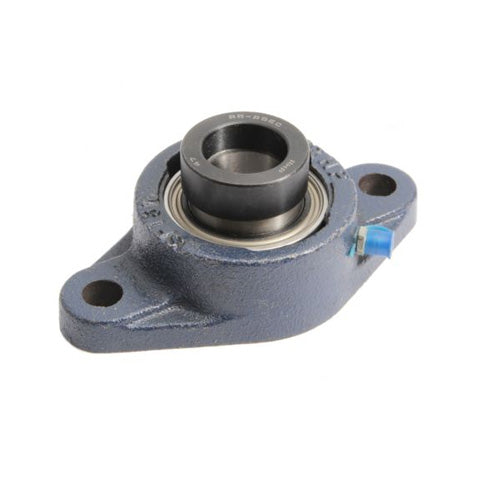

• RHP SFT1-1/8DEC Two Bolt Oval Cast Iron Flange Housing 1-1/8 inch Bore Insert
1 1

SKU: SFT1.1/8DEC-RHP

RHP SFT1-1/8DEC Two Bolt Oval Cast Iron Flange Housing 1-1/8 inch Bore Insert

RHP SFT1-1/8DEC Two Bolt Oval Cast Iron Flange Housing 1-1/8 inch Bore Insert
$76.13 ex VAT
$76.13 ex VAT
Sale Sold out

In stock

Price Break
10+ $51.00
20+ $48.13
30+ $47.56
40+ $46.99
50+ $46.41
75+ $45.84
100+ $42.97
200+ $42.40
250+ $41.83
500+ $41.26
1000+ $40.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Style:
SFT
Bolt Hole Centres:
116.51mm = 4.587 inch
Technical
Bore 1-1/8 inch
L 3.252 inch
H 5.563 inch
J 4.587 inch
G 0.4375 inch
A 1.173 inch
A3 1.972 inch
A4 0.5 inch
B3 1.906 inch
s2 0.721 inch
d2 1.75 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1030-1-1/8DECG+insonly">1030-1-1/8DECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
