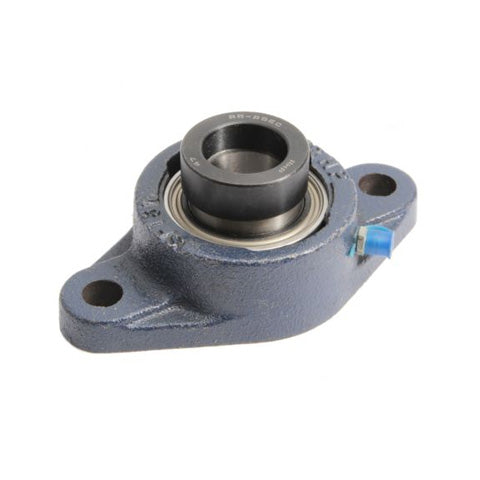

• RHP SFT1-1/8EC Two Bolt Oval Cast Iron Flange Housing 1-1/8 inch Bore Insert
1 1

SKU: SFT1.1/8EC-RHP

RHP SFT1-1/8EC Two Bolt Oval Cast Iron Flange Housing 1-1/8 inch Bore Insert

RHP SFT1-1/8EC Two Bolt Oval Cast Iron Flange Housing 1-1/8 inch Bore Insert
$66.95 ex VAT
$66.95 ex VAT
Sale Sold out

In stock

Price Break
10+ $44.85
20+ $42.33
30+ $41.83
40+ $41.32
50+ $40.82
75+ $40.31
100+ $37.79
200+ $37.29
250+ $36.79
500+ $36.28
1000+ $35.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Style:
SFT
Bolt Hole Centres:
116.51mm = 4.587 inch
Technical
Bore 1-1/8 inch
L 3.252 inch
H 5.563 inch
J 4.587 inch
G 0.4375 inch
A 1.173 inch
A2 1.837 inch
A4 0.5 inch
B2 1.405 inch
s1 0.356 inch
d2 1.75 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1230-1-1/8ECG+insonly">1230-1-1/8ECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
