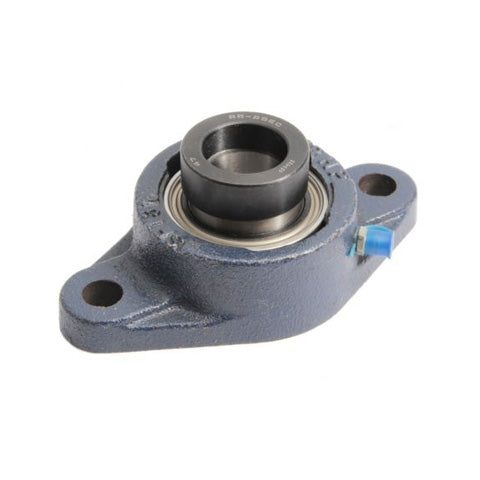

• RHP SFT1-11/16EC Two Bolt Oval Cast Iron Flange Housing 1-11/16 inch Bore Insert
1 1

SKU: SFT1.11/16EC-RHP

RHP SFT1-11/16EC Two Bolt Oval Cast Iron Flange Housing 1-11/16 inch Bore Insert

RHP SFT1-11/16EC Two Bolt Oval Cast Iron Flange Housing 1-11/16 inch Bore Insert
$109.67 ex VAT
$109.67 ex VAT
Sale Sold out

In stock

Price Break
10+ $73.46
20+ $69.34
30+ $68.51
40+ $67.69
50+ $66.86
75+ $66.03
100+ $61.91
200+ $61.08
250+ $60.26
500+ $59.43
1000+ $57.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
42.86mm = 1.687 (1-11/16) inch
Style:
SFT
Bolt Hole Centres:
148.49mm = 5.846 inch
Technical
Bore 1-11/16 inch
L 4.374 inch
H 7.063 inch
J 5.846 inch
G 0.625 inch
A 1.39 inch
A2 2.229 inch
A4 0.563 inch
B2 1.718 inch
s1 0.435 inch
d2 2.5 inch
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1245-1-11/16ECG+insonly">1245-1-11/16ECG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
