SKU: SFT1.15/16EC-RHP

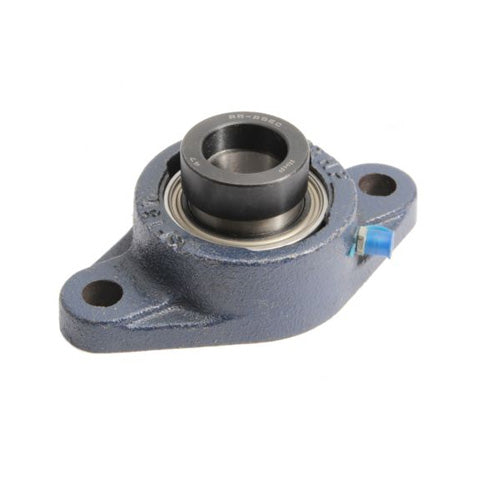

RHP SFT1-15/16EC Two Bolt Oval Cast Iron Flange Housing 1-15/16 inch Bore Insert
RHP SFT1-15/16EC Two Bolt Oval Cast Iron Flange Housing 1-15/16 inch Bore Insert
Regular price
$122.56
ex VAT
Regular price
Sale price
$122.56
ex VAT
In stock
Price Break
10+
$82.09
20+
$77.48
30+
$76.56
40+
$75.64
50+
$74.71
75+
$73.79
100+
$69.18
200+
$68.26
250+
$67.33
500+
$66.41
1000+
$64.57
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- SFT
- Bolt Hole Centres:
- 156.997mm = 6.181 inch
Technical
Technical
| Bore | 1-15/16 inch |
|---|---|
| L | 4.563 inch |
| H | 7.437 inch |
| J | 6.181 inch |
| G | 0.625 inch |
| A | 1.563 inch |
| A2 | 2.386 inch |
| A4 | 0.563 inch |
| B2 | 1.718 inch |
| s1 | 0.435 inch |
| d2 | 2.75 inch |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1250-1-15/16ECG+insonly">1250-1-15/16ECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
