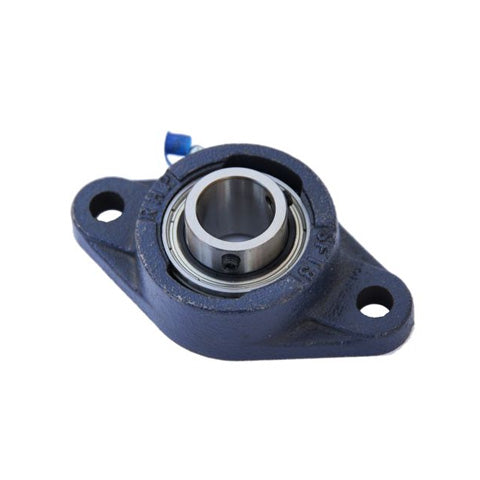

• RHP SFT1/2 Two Bolt Oval Cast Iron Flange Housing 1/2 inch Bore Insert
1 1

SKU: SFT1/2-RHP

RHP SFT1/2 Two Bolt Oval Cast Iron Flange Housing 1/2 inch Bore Insert

RHP SFT1/2 Two Bolt Oval Cast Iron Flange Housing 1/2 inch Bore Insert
$45.51 ex VAT
$45.51 ex VAT
Sale Sold out

In stock

Price Break
10+ $30.48
20+ $28.77
30+ $28.43
40+ $28.08
50+ $27.74
75+ $27.40
100+ $25.69
200+ $25.34
250+ $25.00
500+ $24.66
1000+ $23.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
12.7mm = 0.5 (1/2) inch
Style:
SFT
Bolt Hole Centres:
76.505mm = 3.012 inch
Technical
Bore 1/2 inch
L 2.067 inch
H 3.878 inch
J 3.012 inch
G 0.375 inch
A 0.969 inch
A1 1.294 inch
A4 0.374 inch
B 1.078 inch
s 0.455 inch
d1 0.953 inch
Dynamic load Cr 9550 N
Static load Cor 4800 N
Rec max speed 7000 rpm
Weight 0.4 kg
Insert <a href="advanced_search_result.php?keywords=1017-1/2G+insonly">1017-1/2G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
