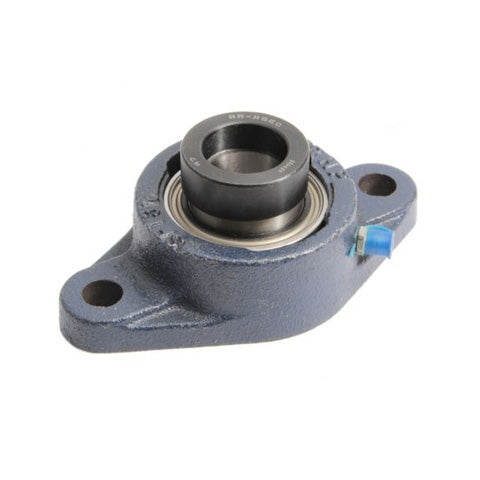

• RHP SFT1/2EC Two Bolt Oval Cast Iron Flange Housing 1/2 inch Bore Insert
1 1

SKU: SFT1/2EC-RHP

RHP SFT1/2EC Two Bolt Oval Cast Iron Flange Housing 1/2 inch Bore Insert

RHP SFT1/2EC Two Bolt Oval Cast Iron Flange Housing 1/2 inch Bore Insert
$46.37 ex VAT
$46.37 ex VAT
Sale Sold out

In stock

Price Break
10+ $31.06
20+ $29.32
30+ $28.97
40+ $28.62
50+ $28.27
75+ $27.92
100+ $26.18
200+ $25.83
250+ $25.48
500+ $25.13
1000+ $24.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
12.7mm = 0.5 (1/2) inch
Style:
SFT
Bolt Hole Centres:
76.505mm = 3.012 inch
Technical
Bore 1/2 inch
L 2.067 inch
H 3.878 inch
J 3.012 inch
G 0.375 inch
A 0.969 inch
A2 1.536 inch
A4 0.374 inch
B2 1.124 inch
s1 0.258 inch
d2 1.125 inch
Dynamic load Cr 9550 N
Static load Cor 4800 N
Rec max speed 7000 rpm
Weight 0.4 kg
Insert <a href="advanced_search_result.php?keywords=1217-1/2ECG+insonly">1217-1/2ECG Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
